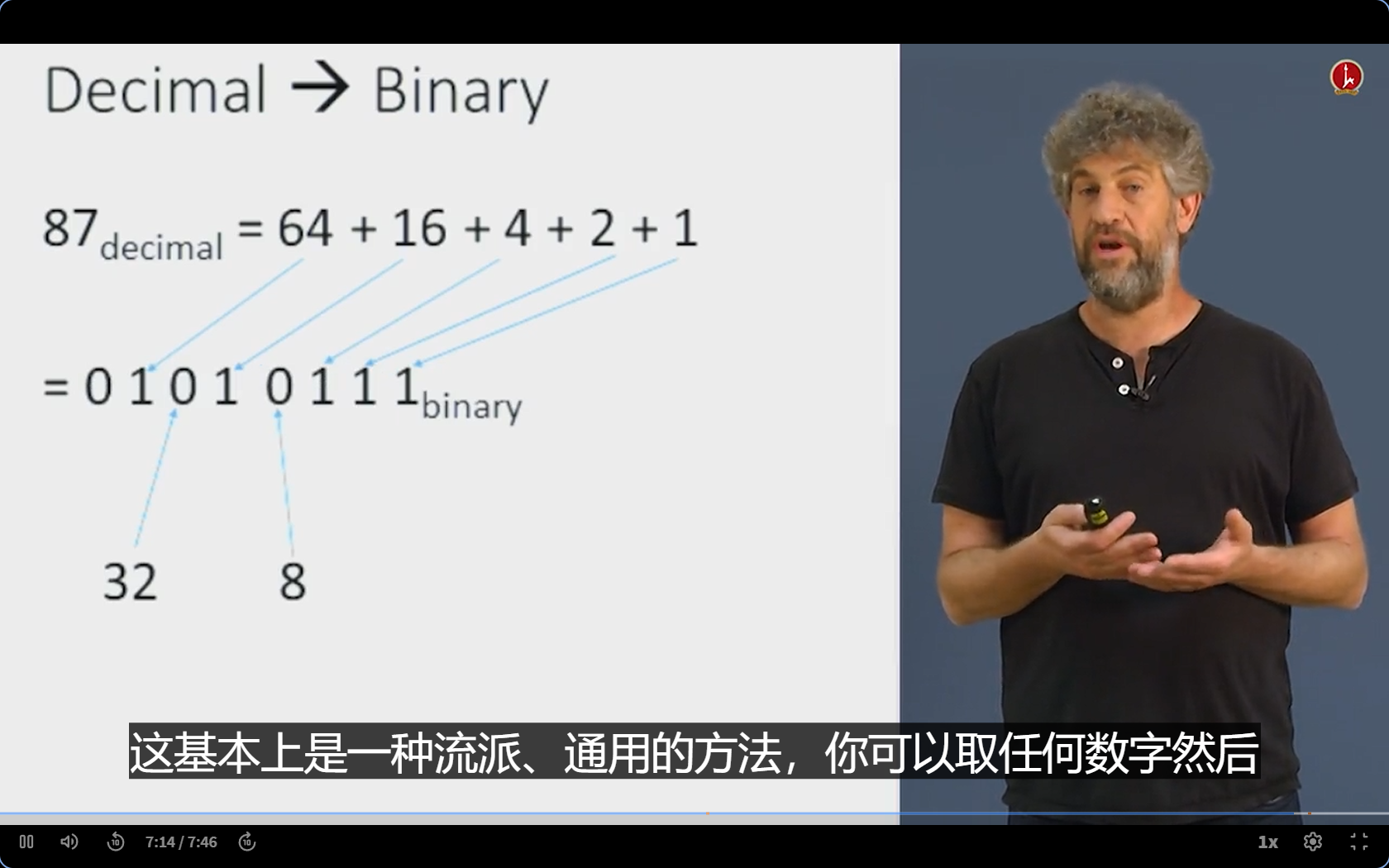

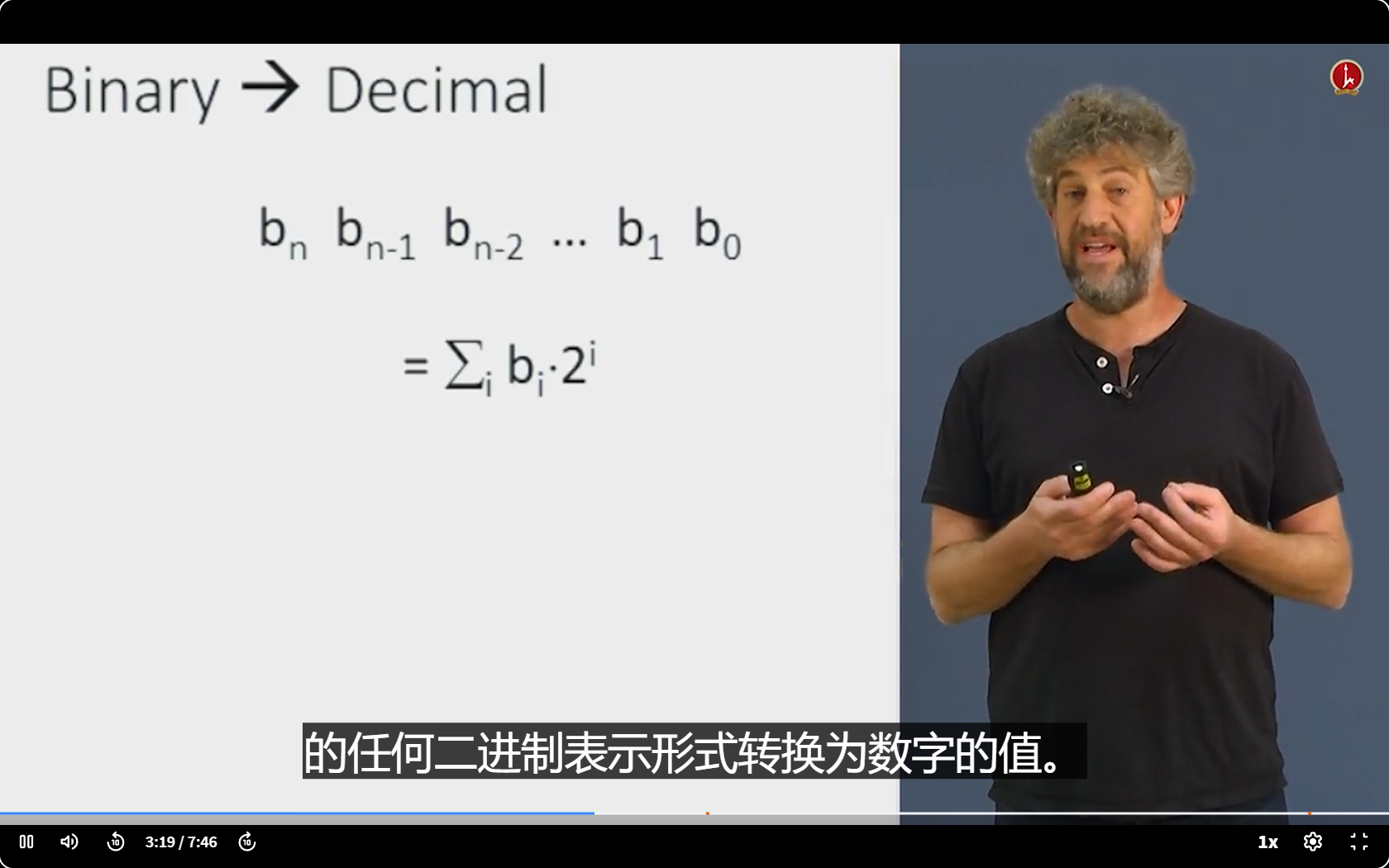

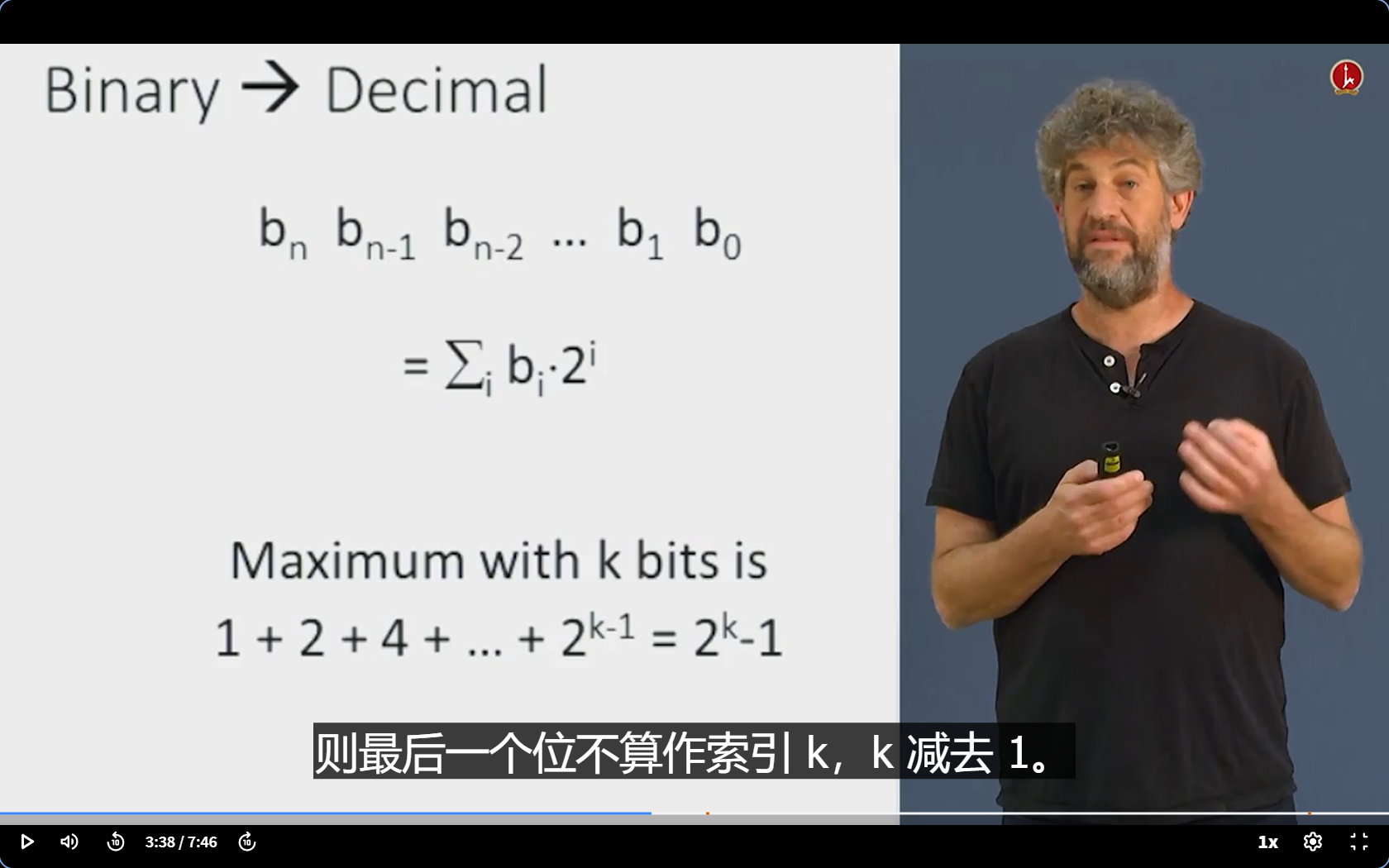

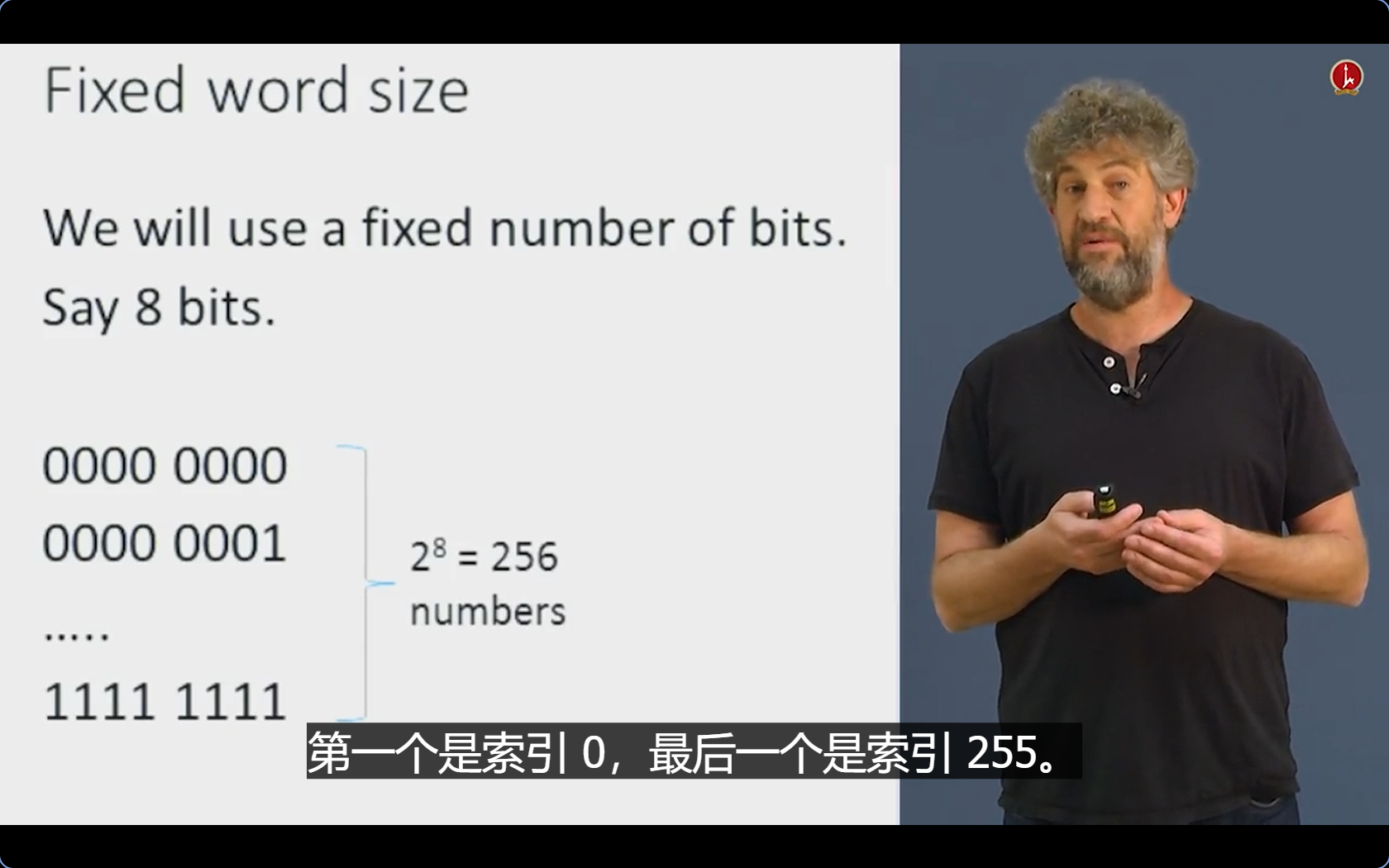

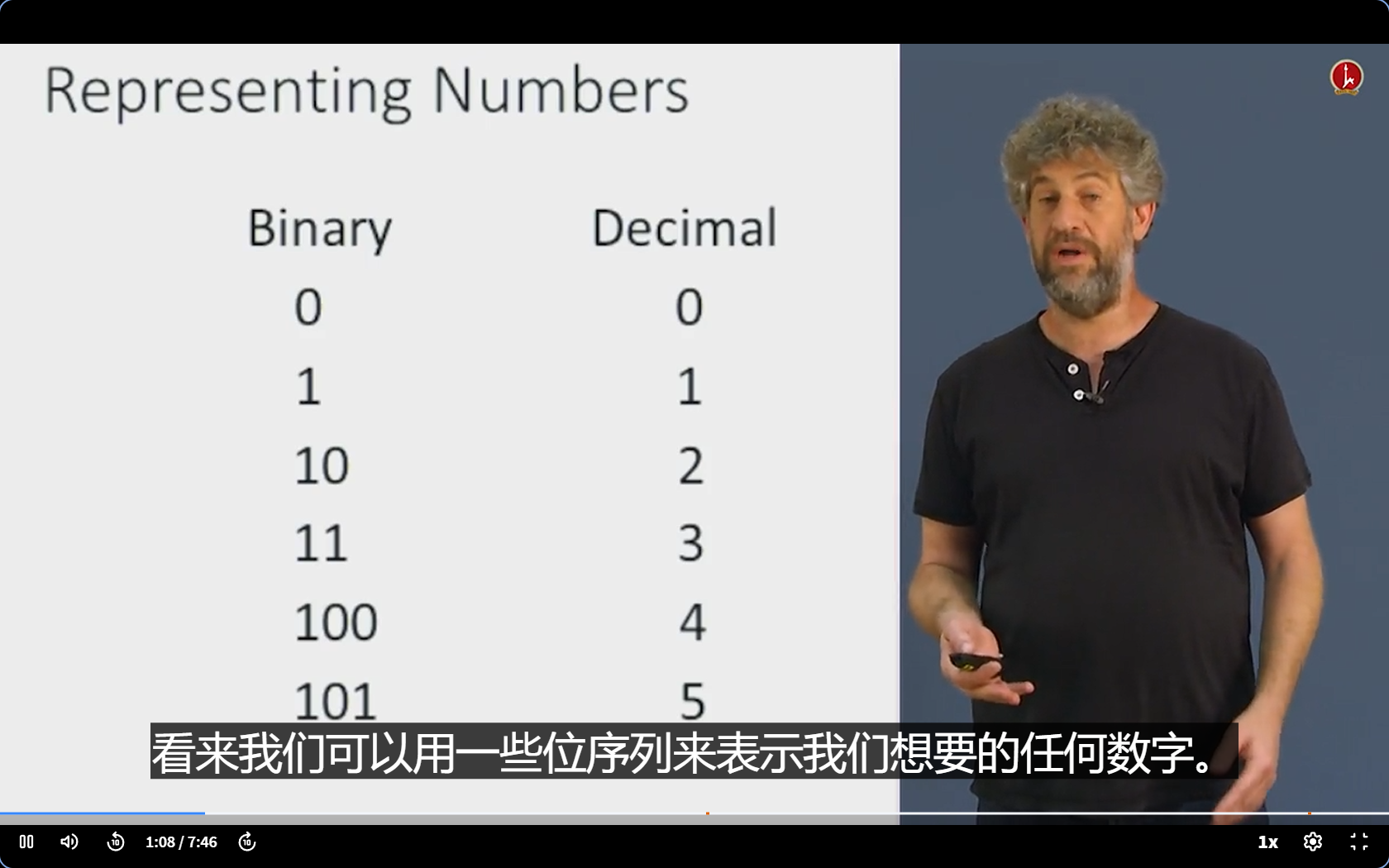

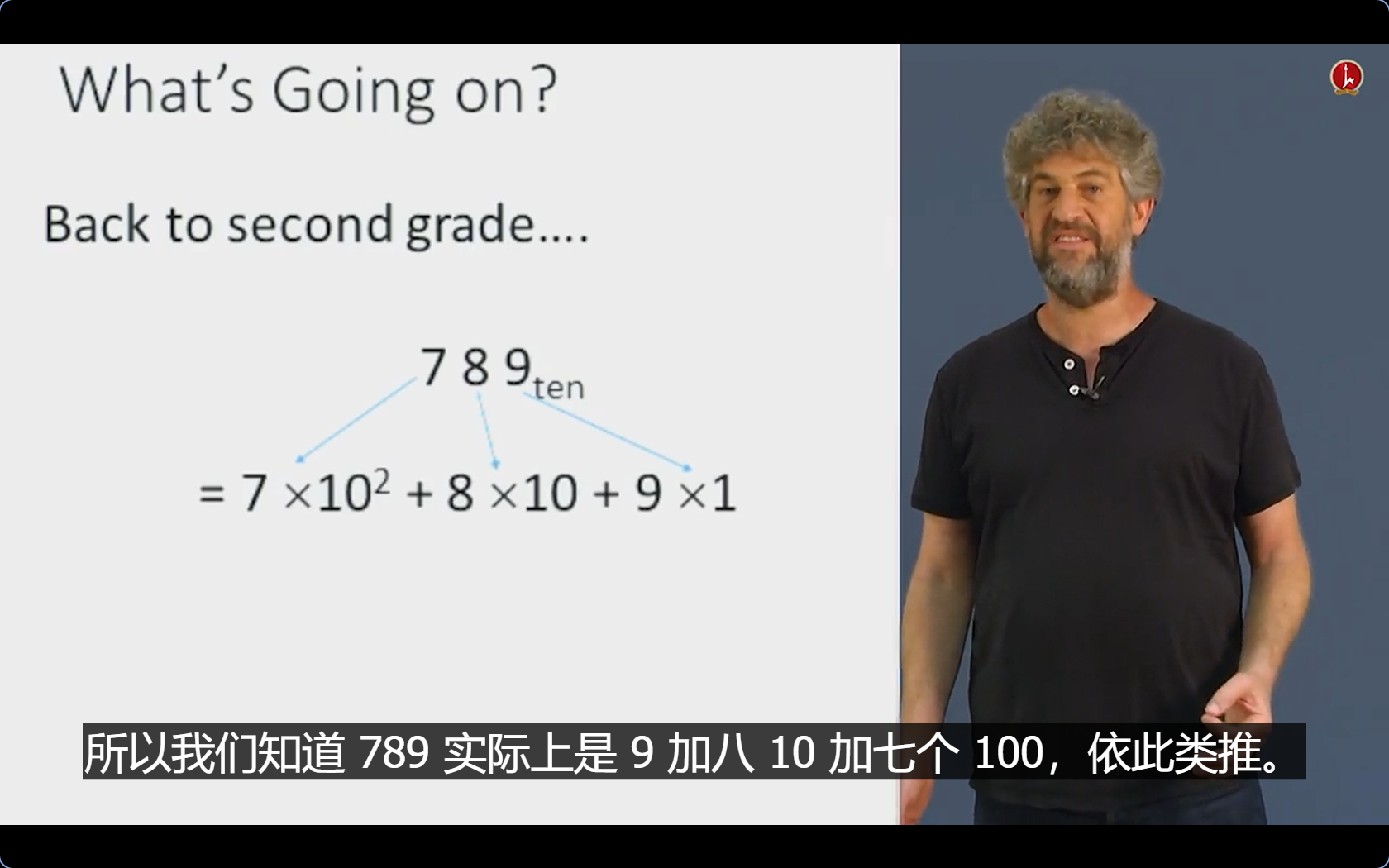

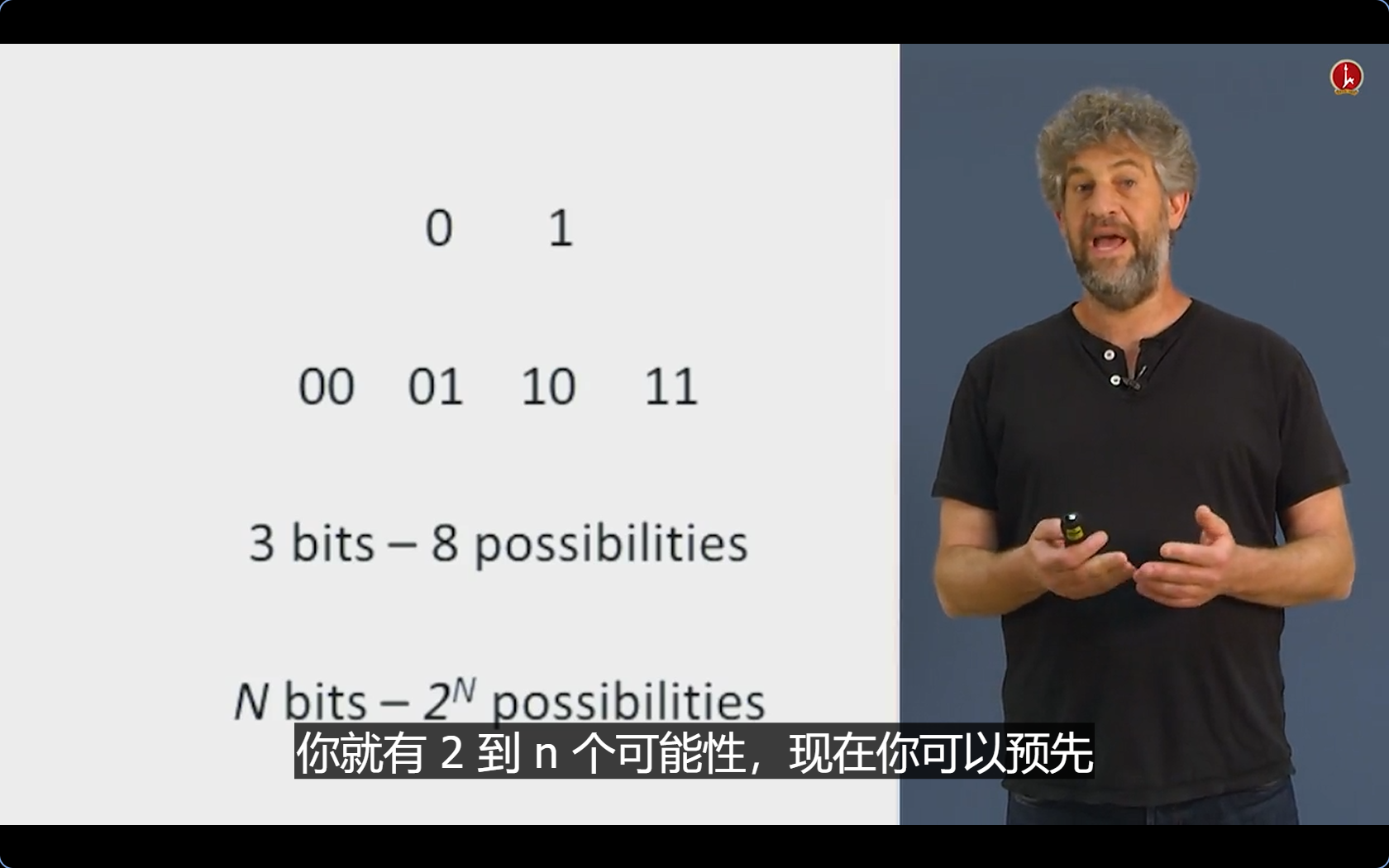

2.1 Binary Numbers

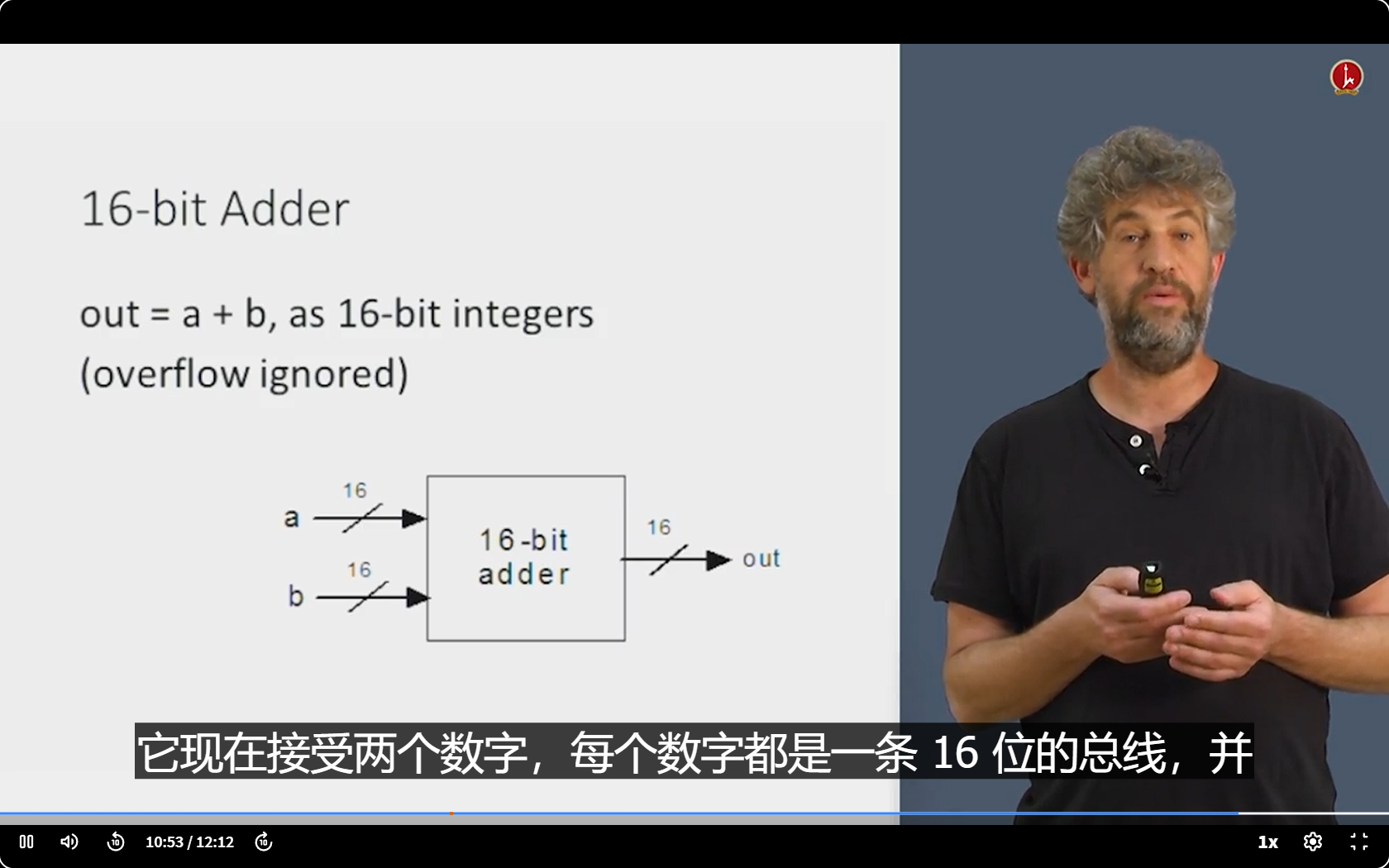

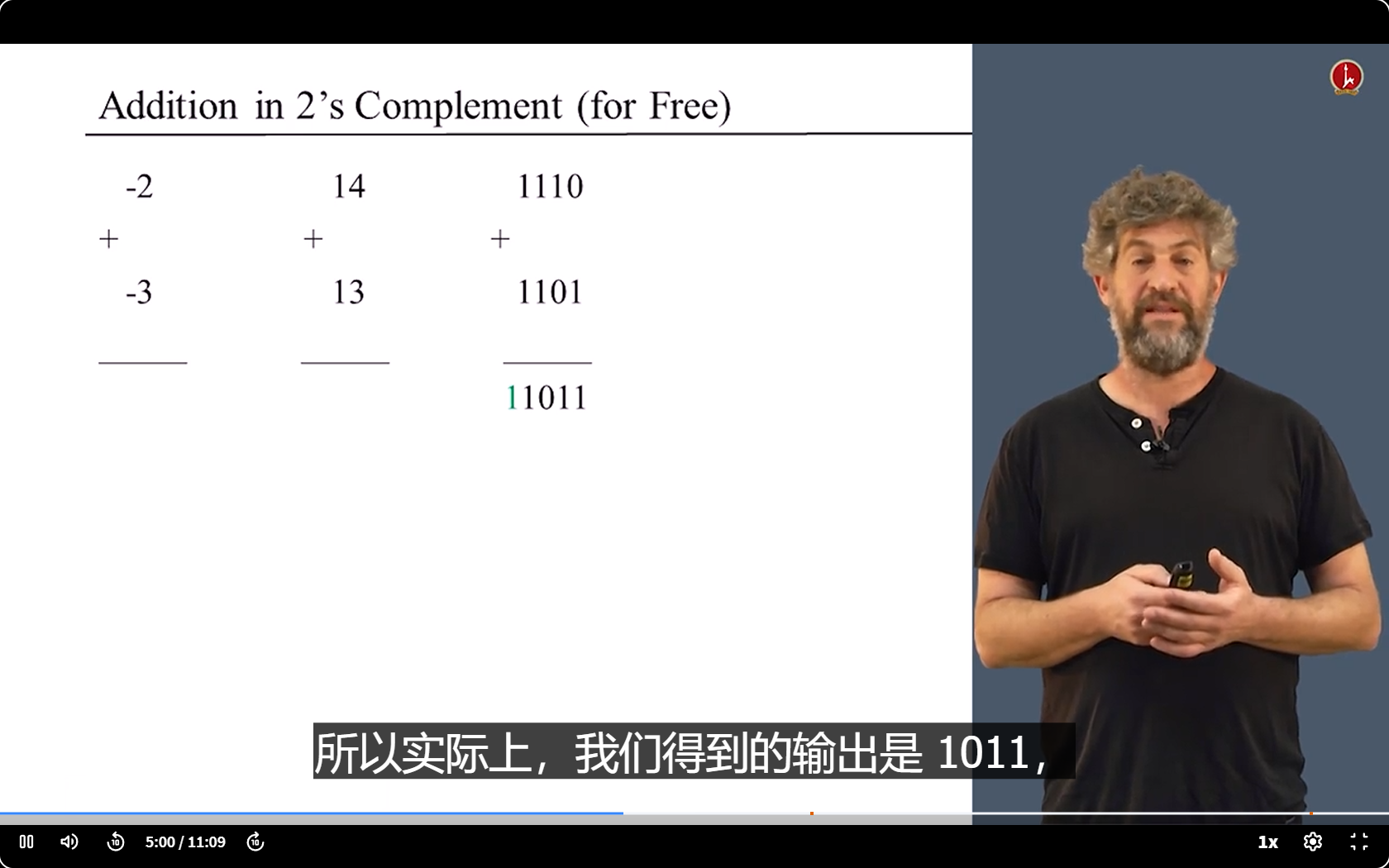

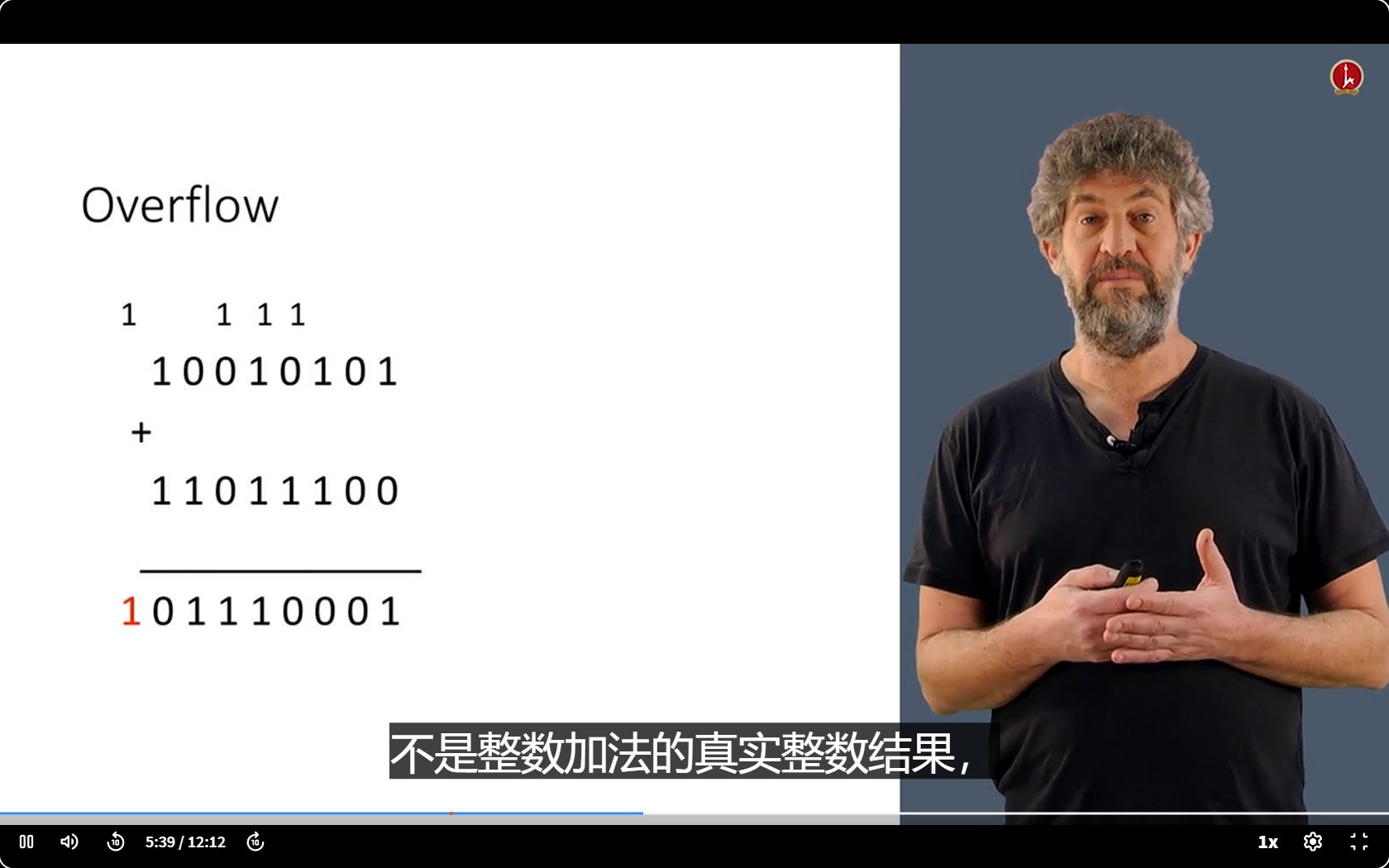

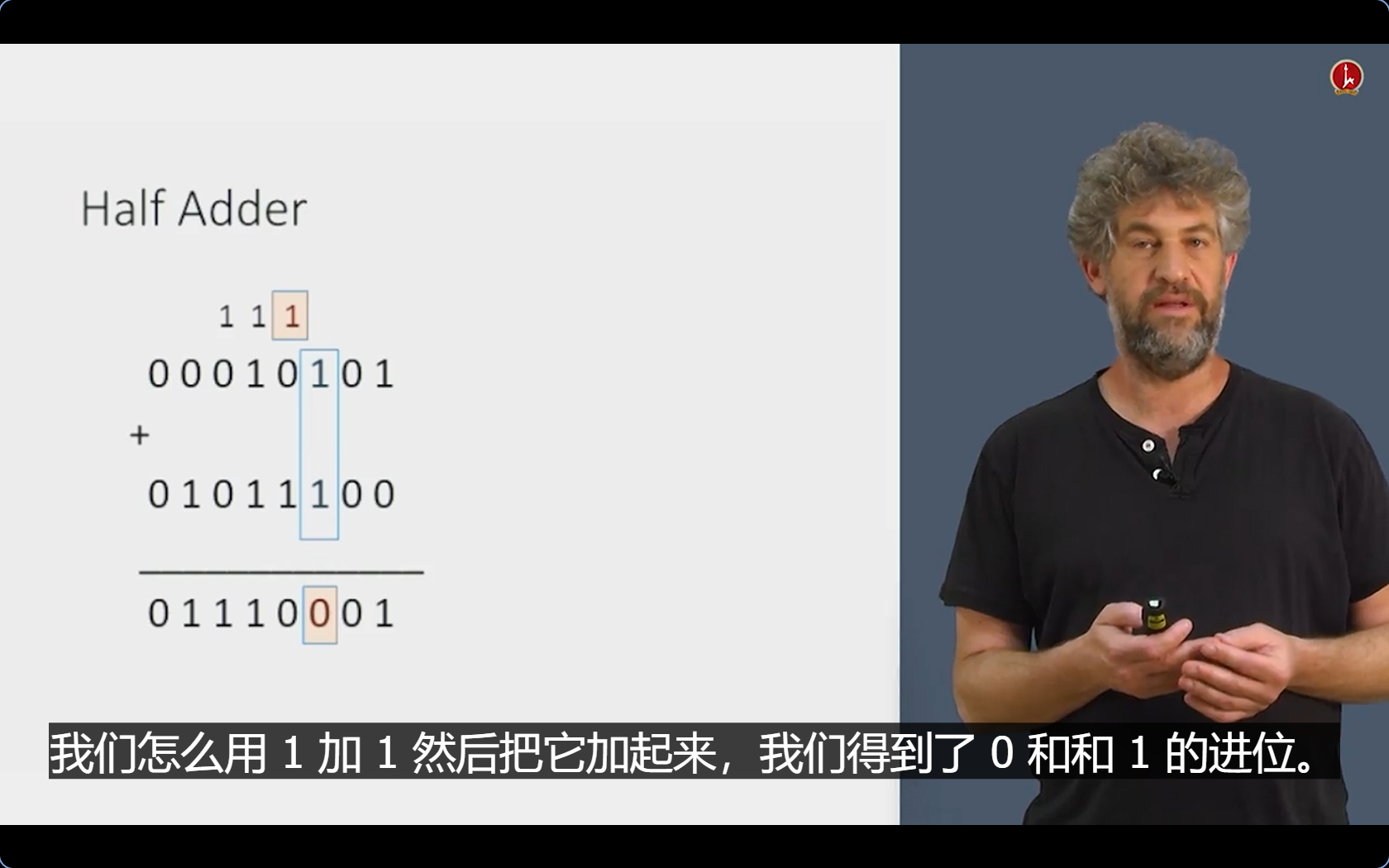

2.2 Binary Addtion

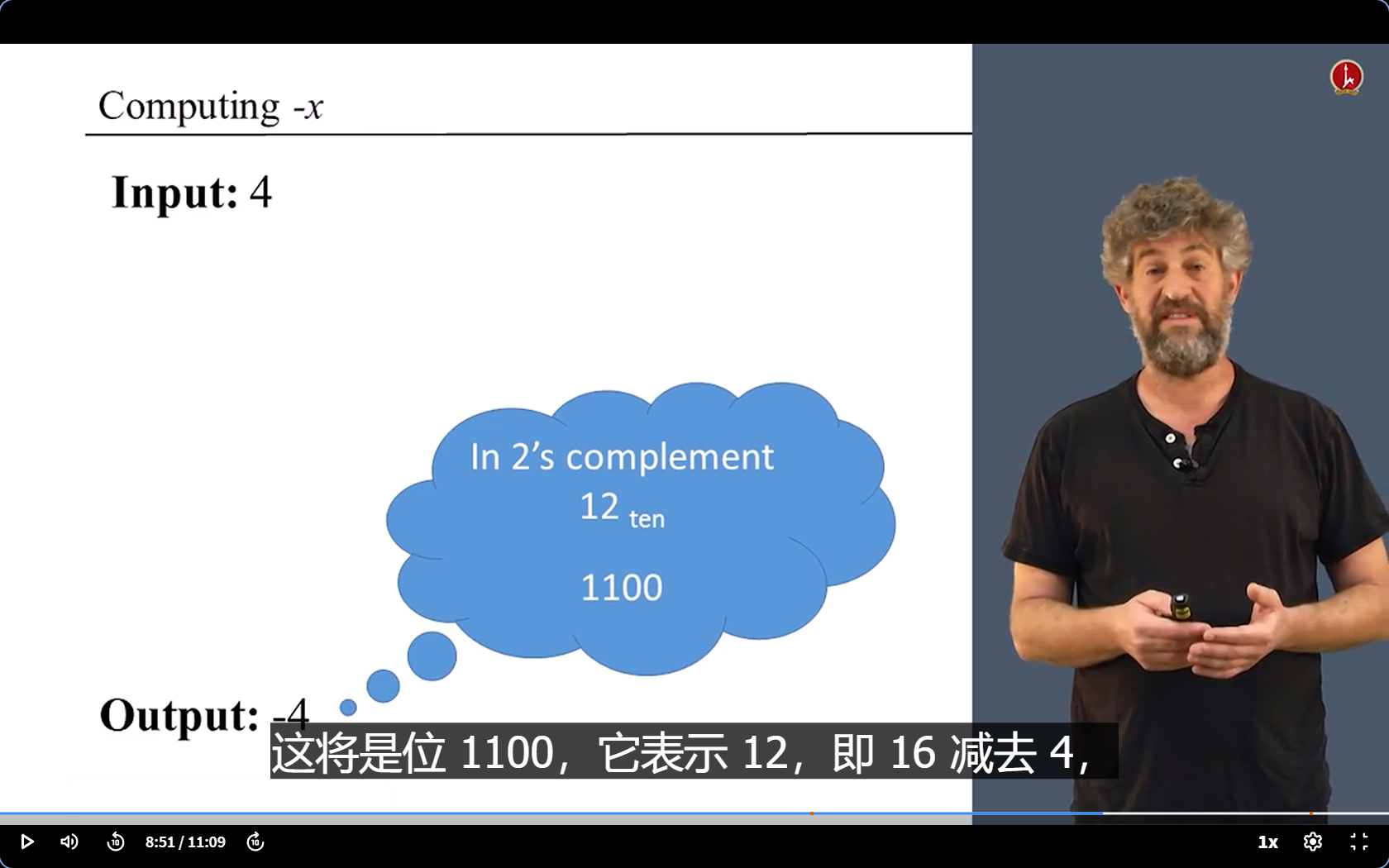

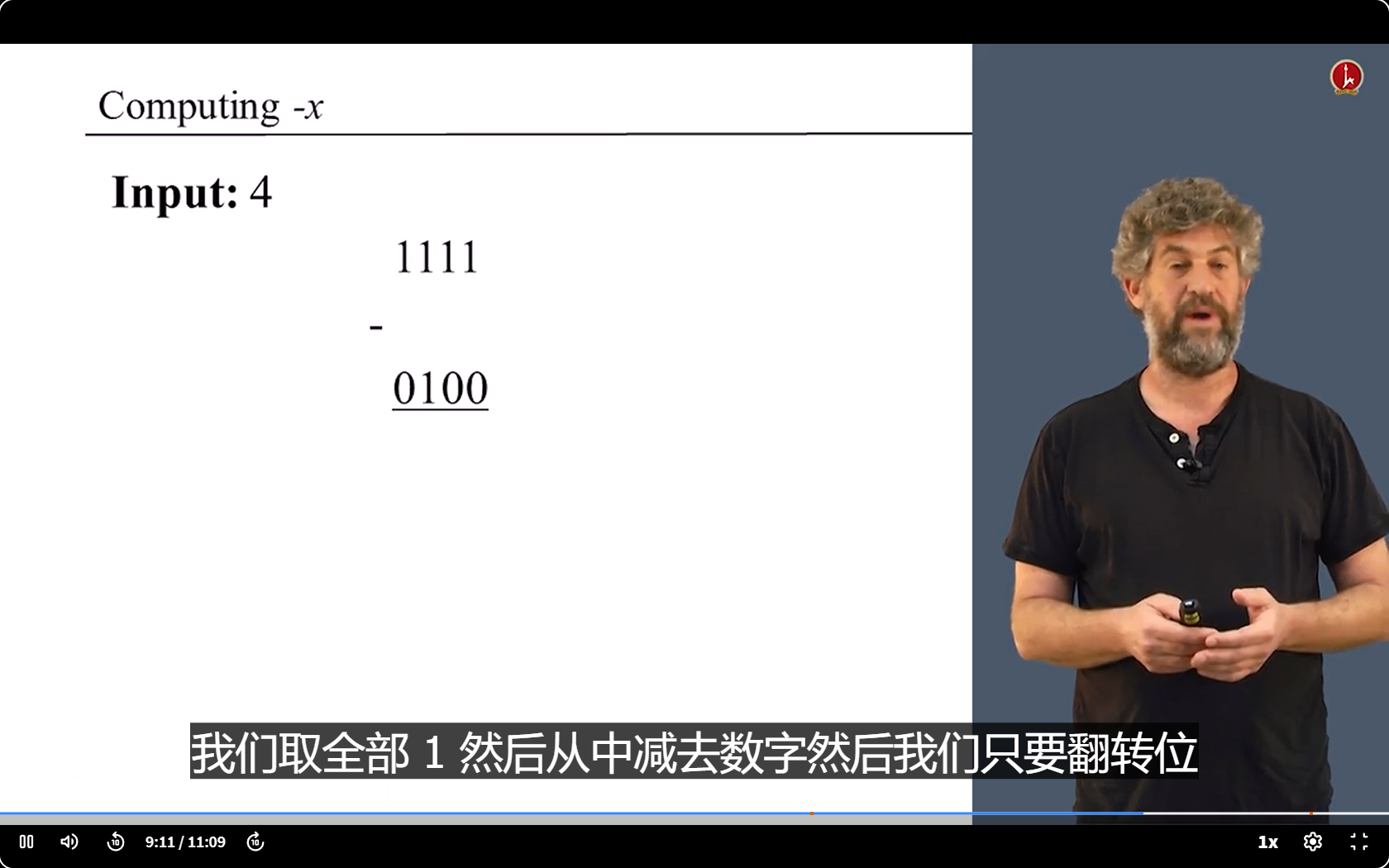

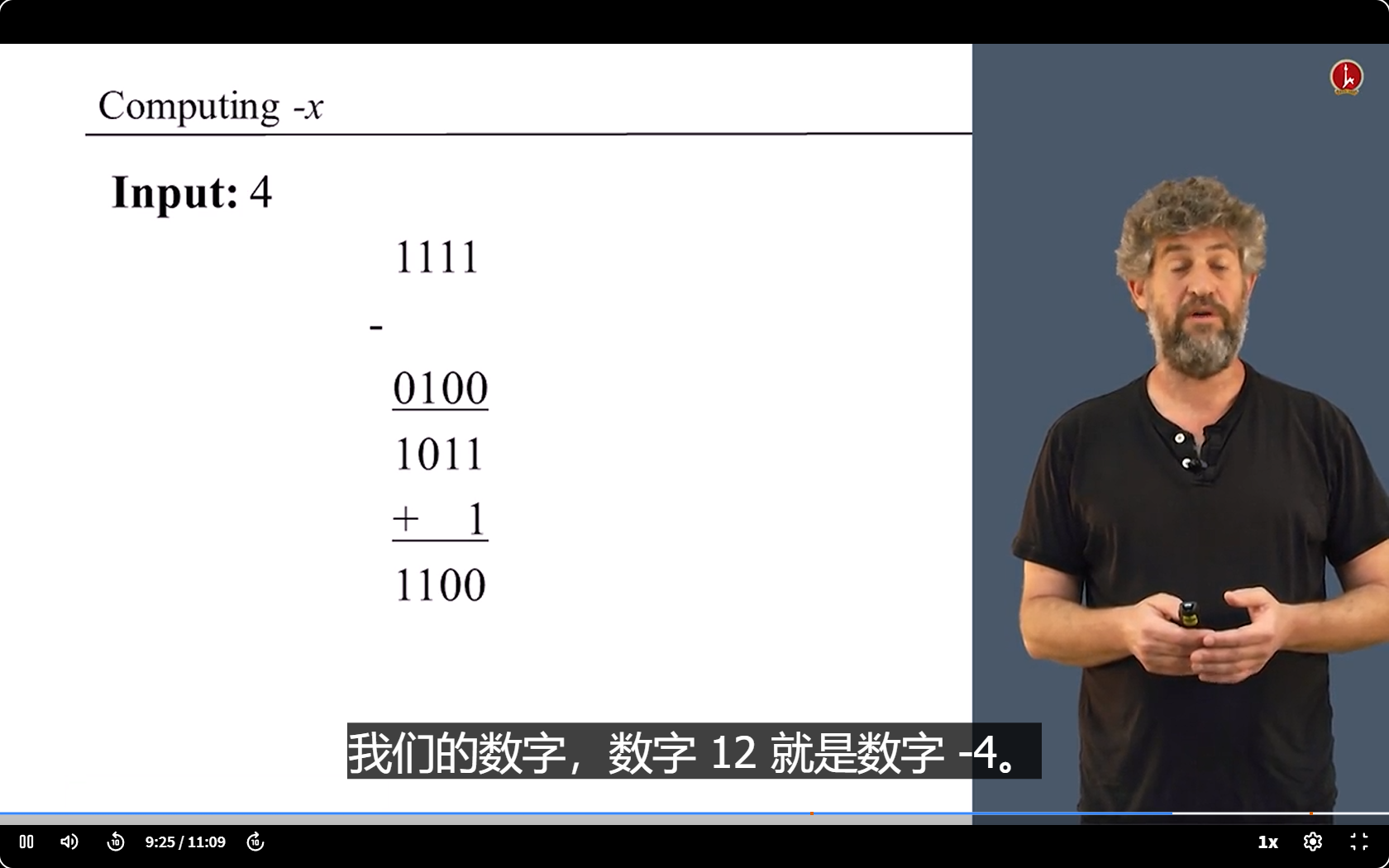

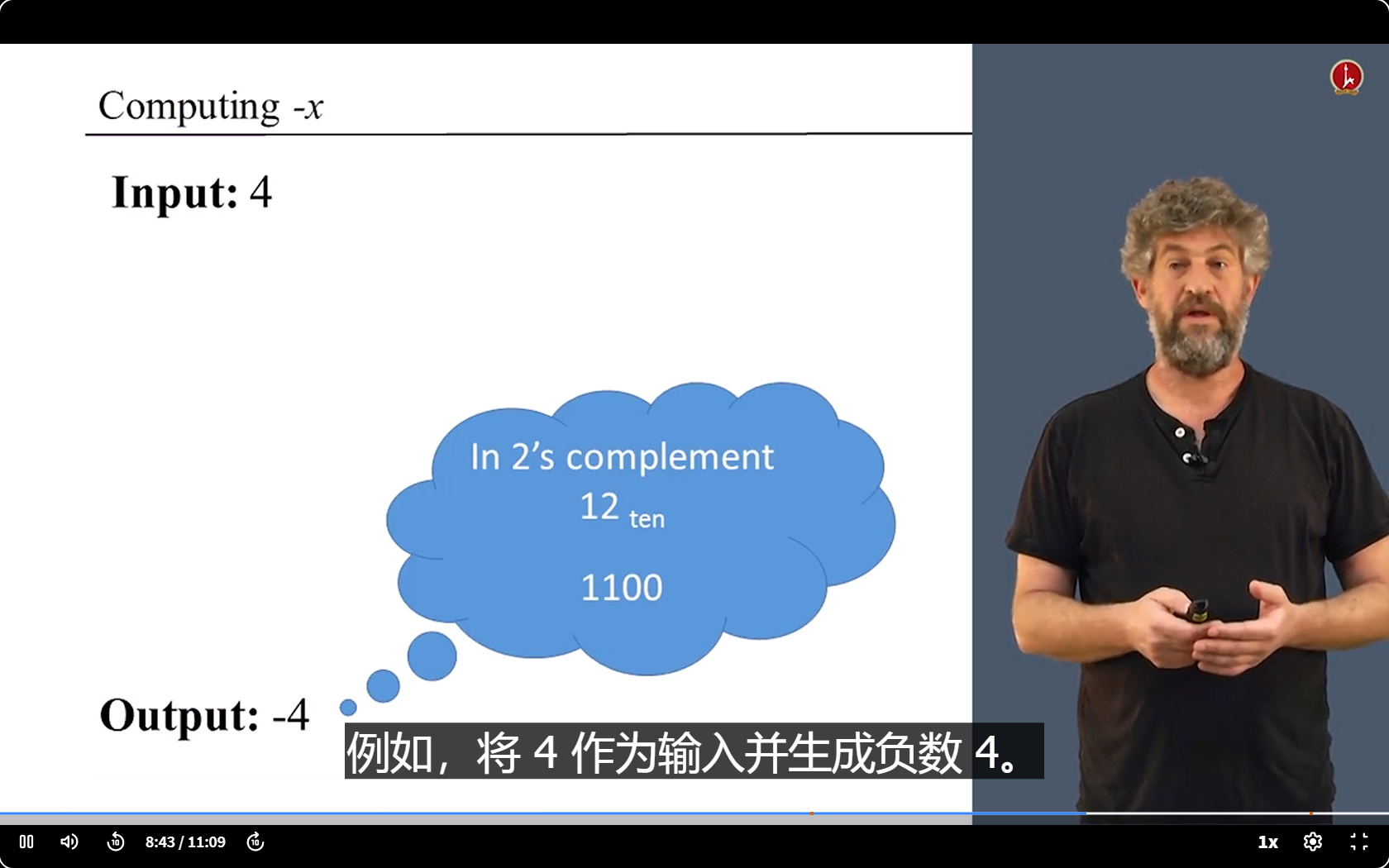

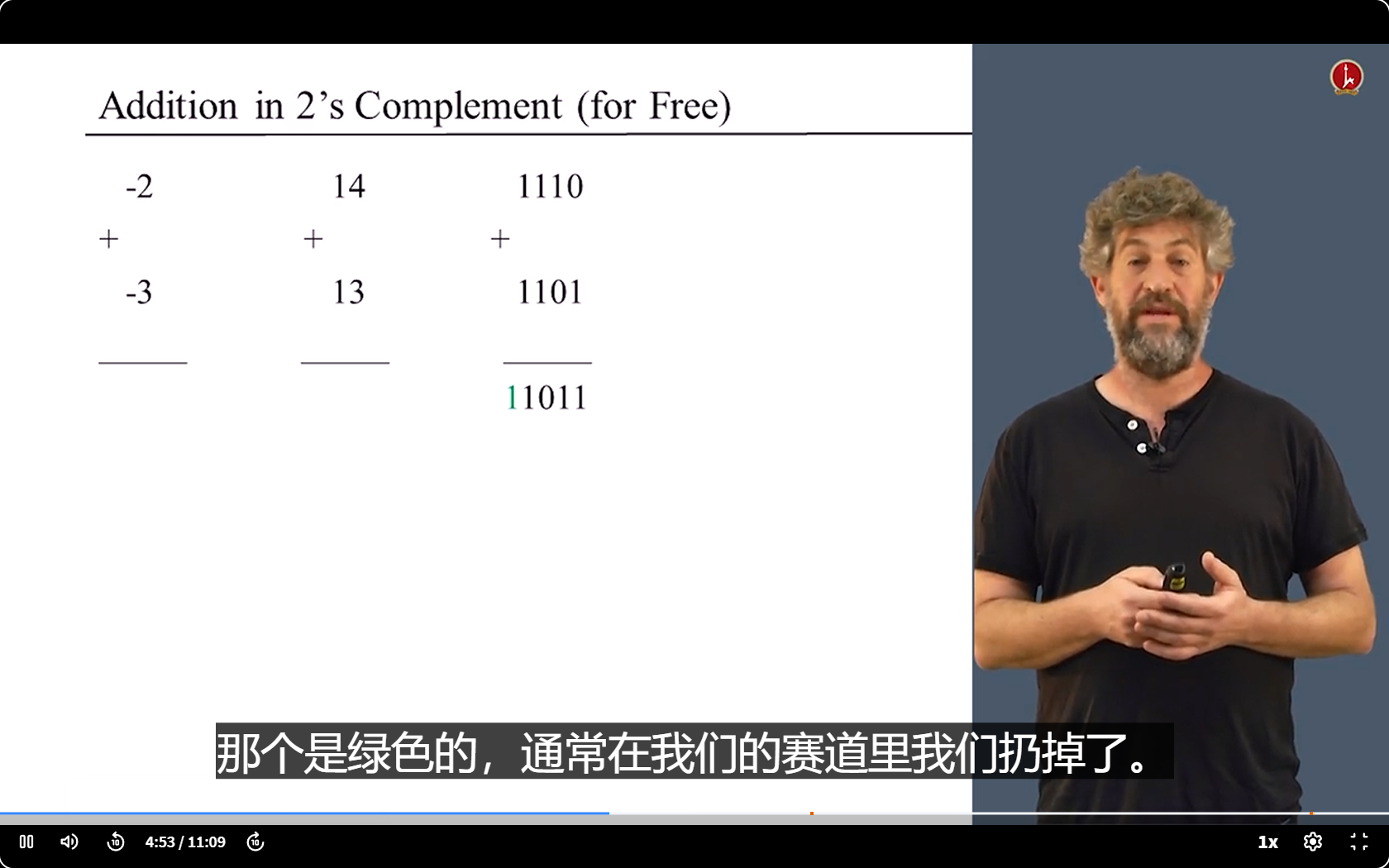

2.3 Negative Numbers

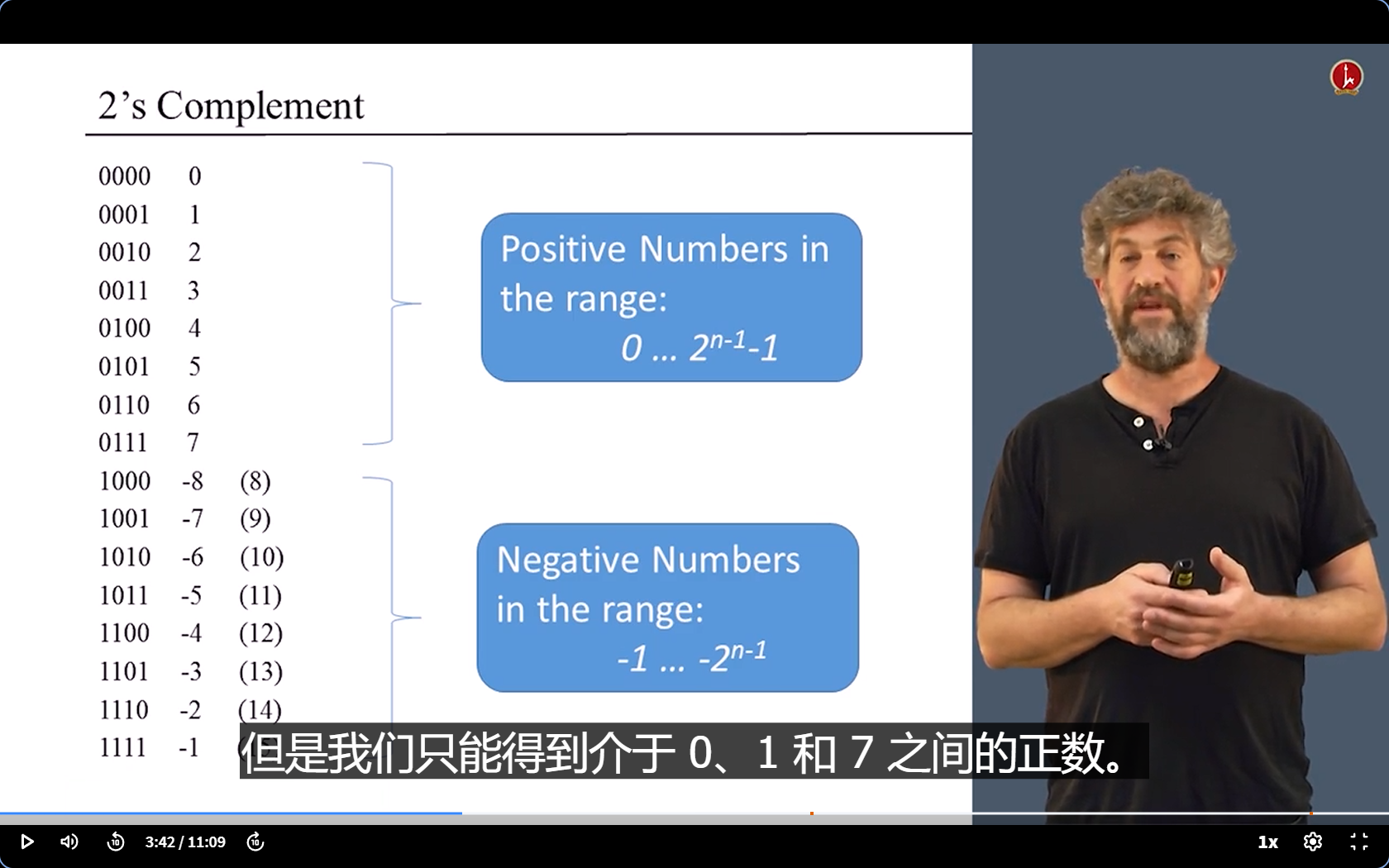

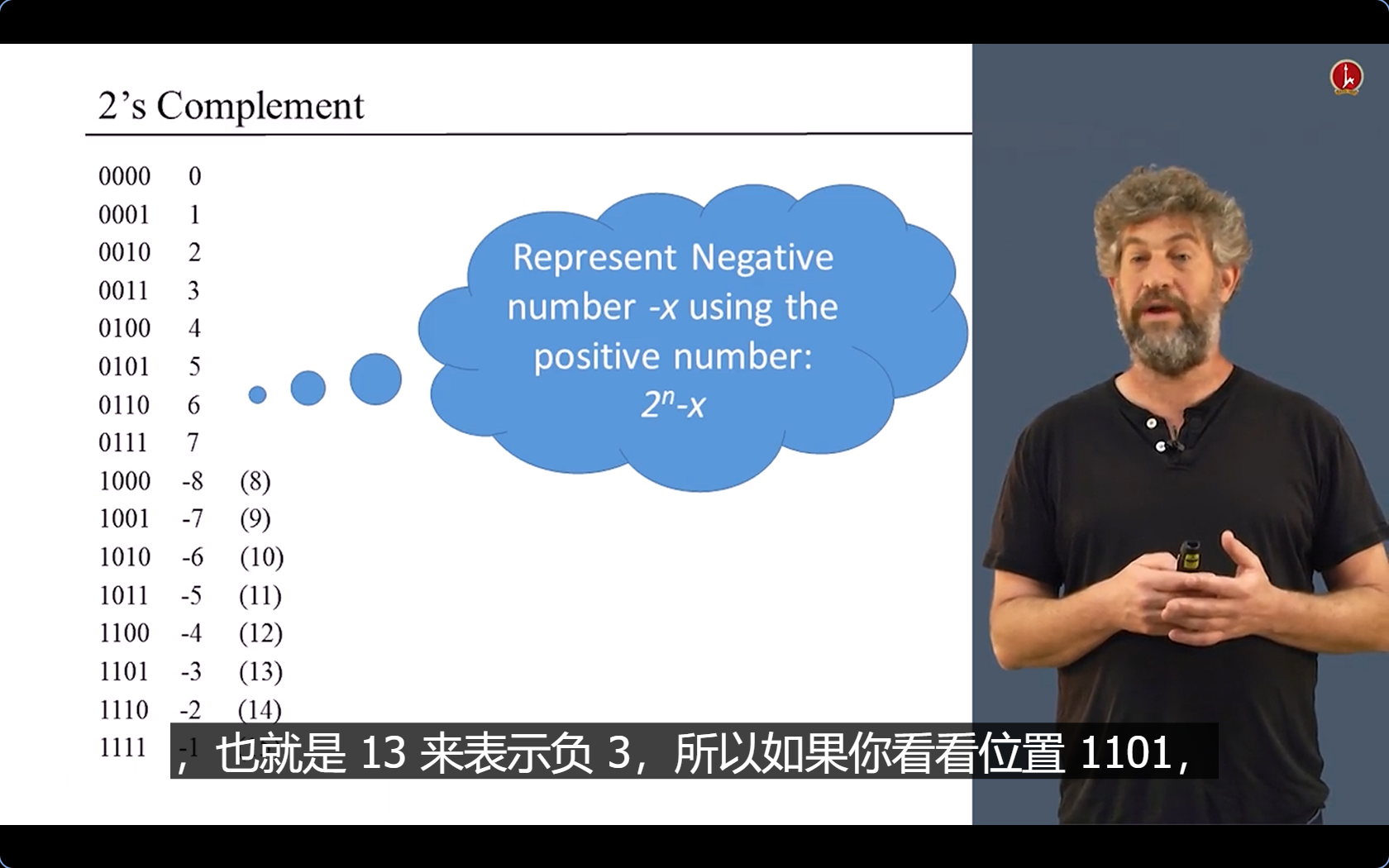

前一半的二进制数字用来表示正数，后一半的二进制数字（16-3=13）留作表示负数

？？？

下面是二进制转化为对应负数，上面是十进制转化为对应负数。

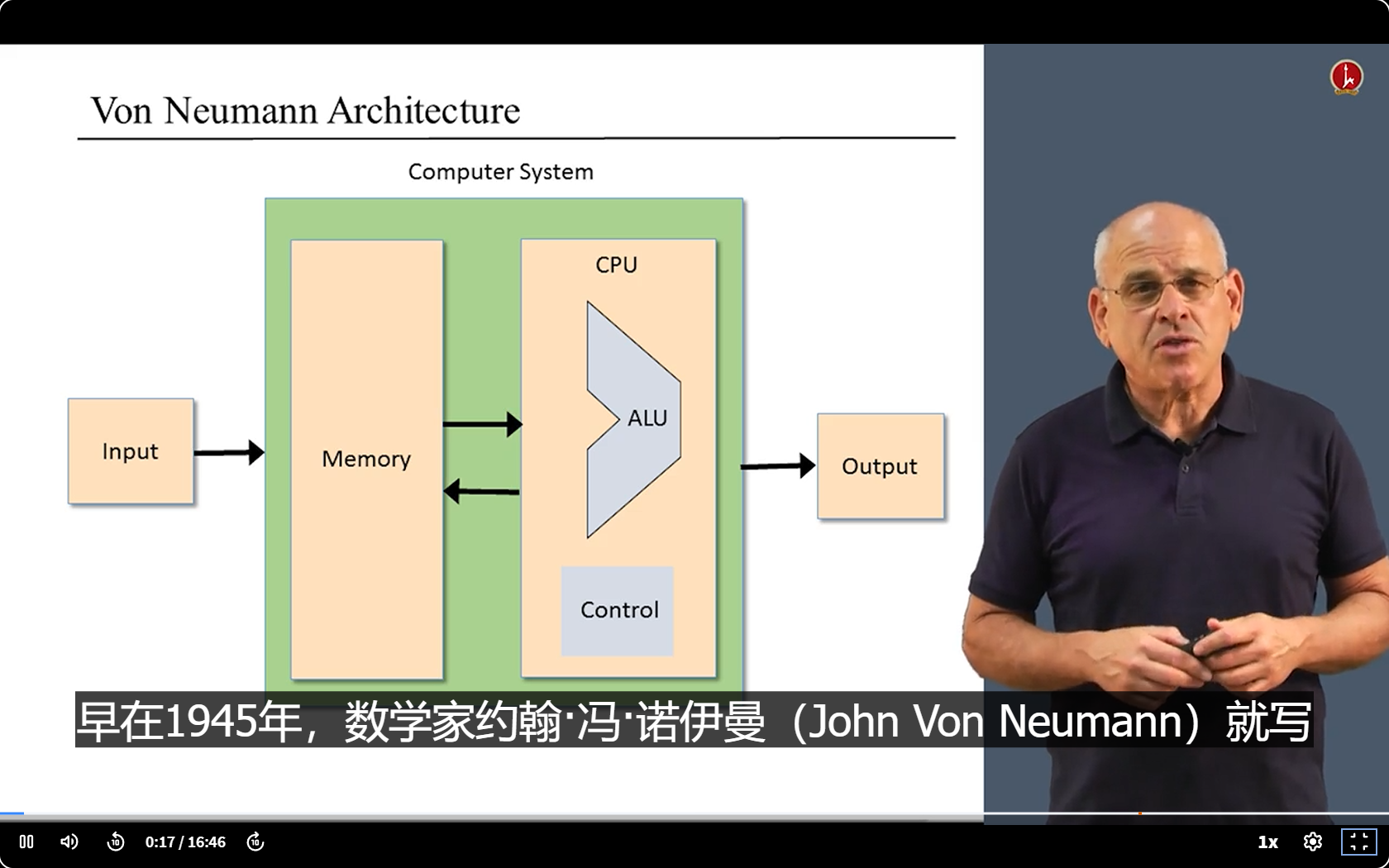

2.4 ALU

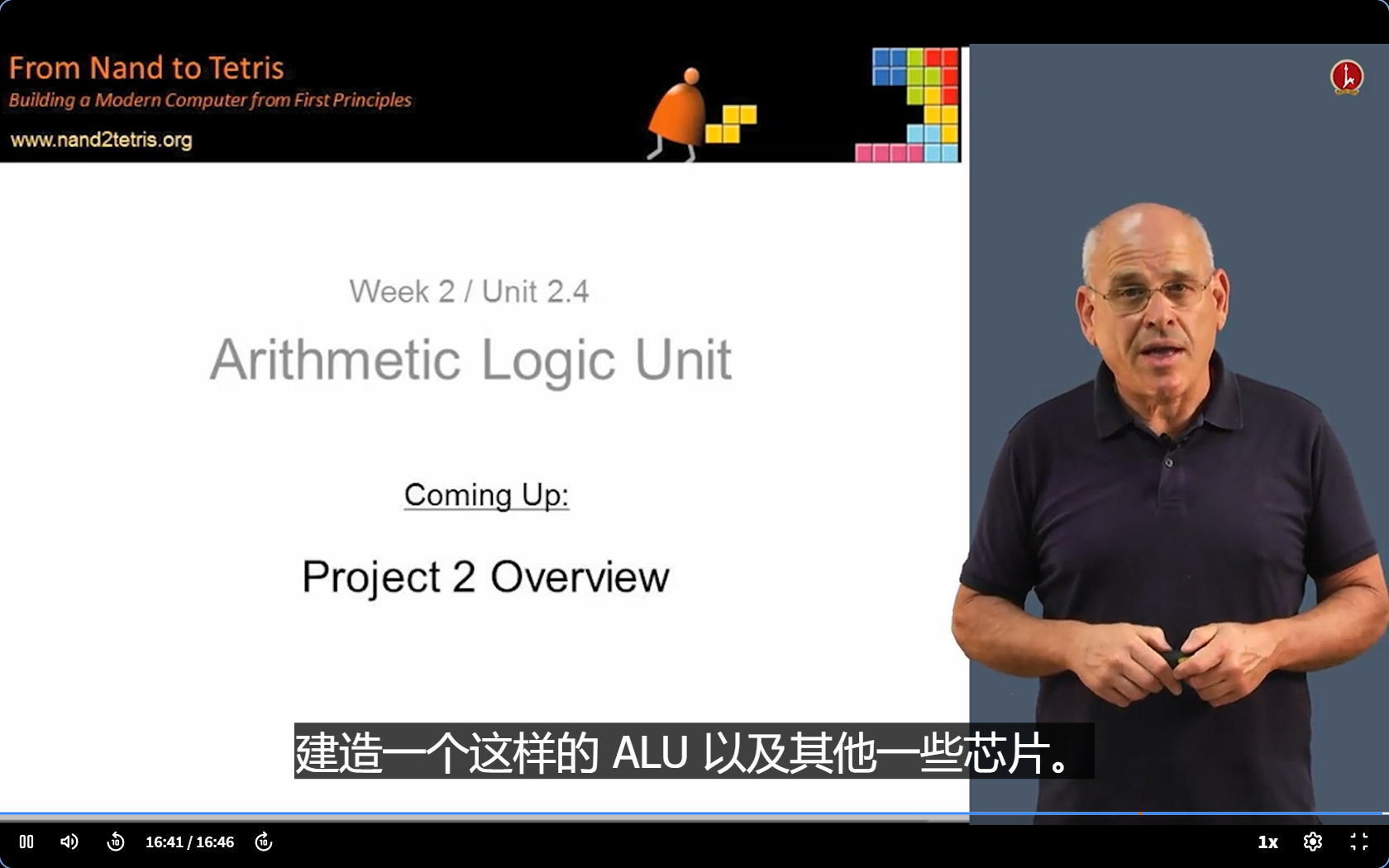

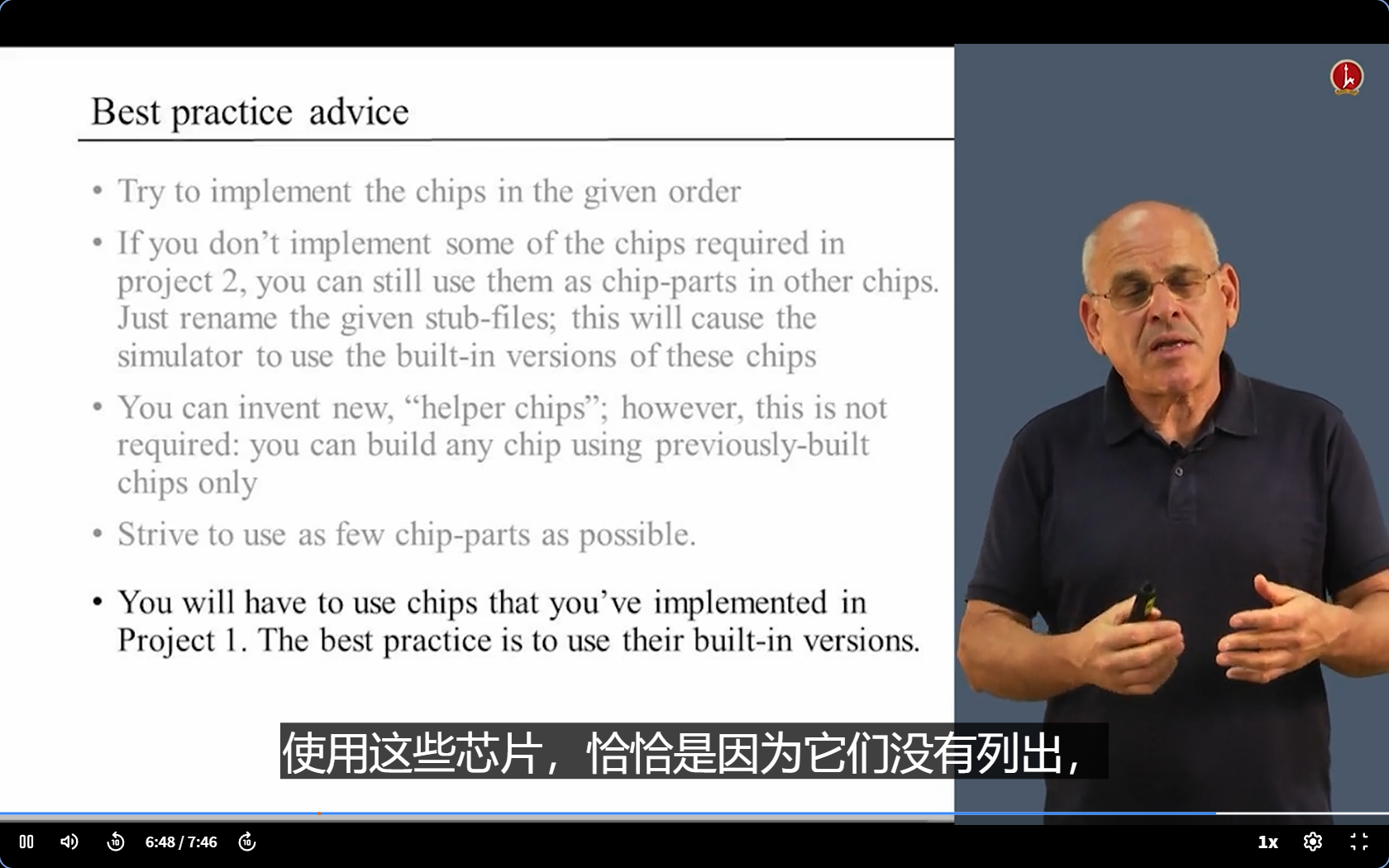

2.5 Project 2 Overview

/**
 * out = (in[0] or in[1] or ... or in[15])
 */

// 我觉得叫Or1Way16更好，叫Or16Way类似于已有的Or8Way
CHIP Or16Way {
    IN in[16];
    OUT out;

    PARTS:
    Or(a = in[0], b = in[1], out = o1);
    Or(a = o1, b = in[2], out = o2);
    Or(a = o2, b = in[3], out = o3);
    Or(a = o3, b = in[4], out = o4);
    Or(a = o4, b = in[5], out = o5);
    Or(a = o5, b = in[6], out = o6);
    Or(a = o6, b = in[7], out = o7);
    Or(a = o7, b = in[8], out = o8);
    Or(a = o8, b = in[9], out = o9);
    Or(a = o9, b = in[10], out = o10);
    Or(a = o10, b = in[11], out = o11);
    Or(a = o11, b = in[12], out = o12);
    Or(a = o12, b = in[13], out = o13);
    Or(a = o13, b = in[14], out = o14);
    Or(a = o14, b = in[15], out = out);
}

Or 16 ：16个并行的Or芯片

Or 16 Way ：16个Or芯片串行进行操作, 可以理解为16个bit串行进行or操作。

2.6 code

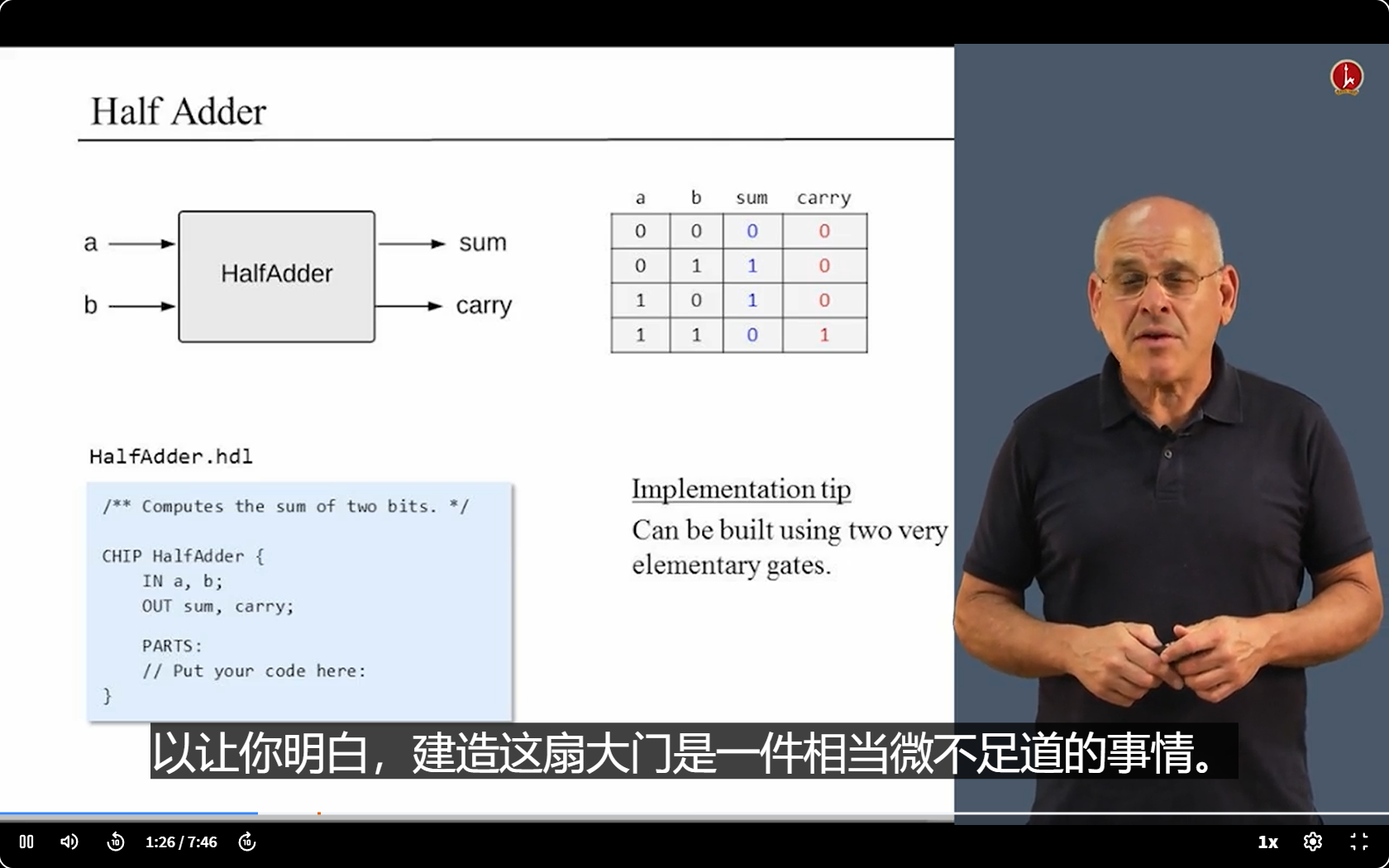

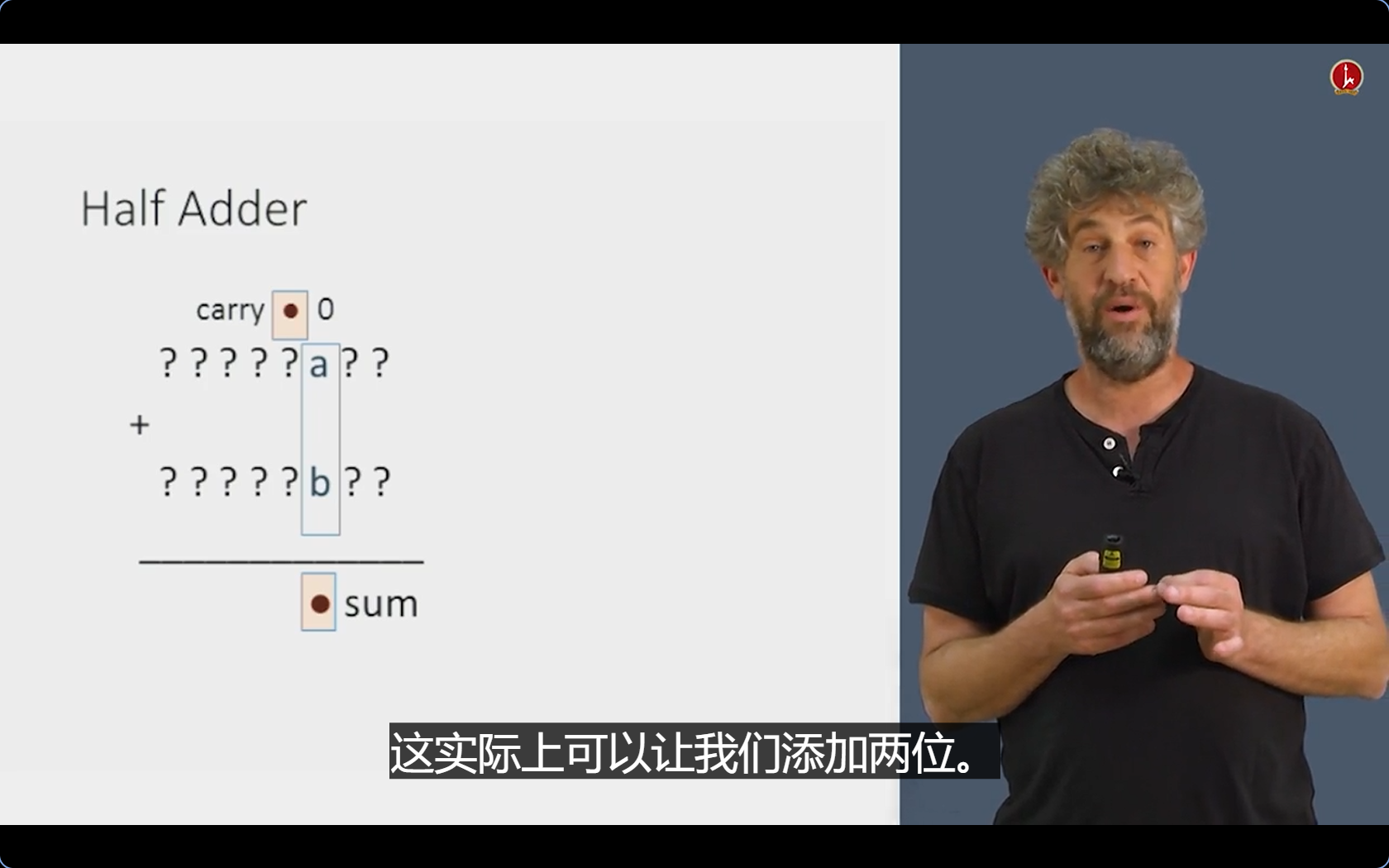

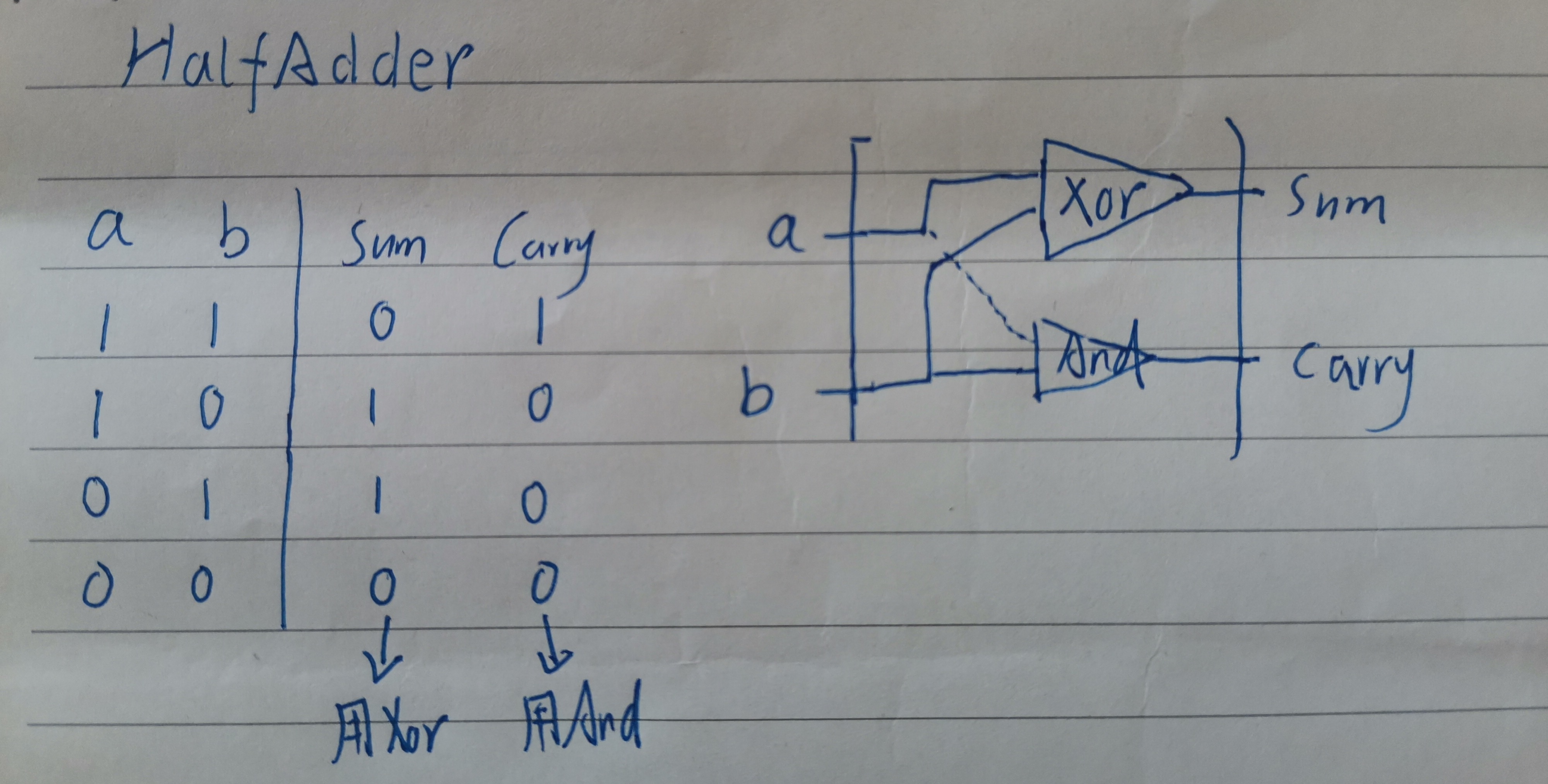

HalfAdder

/**
 * Computes the sum of two bits.
 */

CHIP HalfAdder {
    IN a, b;    // 1-bit inputs
    OUT sum,    // Right bit of a + b
        carry;  // Left bit of a + b

    PARTS:
    Xor(a=a , b=b , out =sum );
    And(a=a , b=b , out=carry );

}

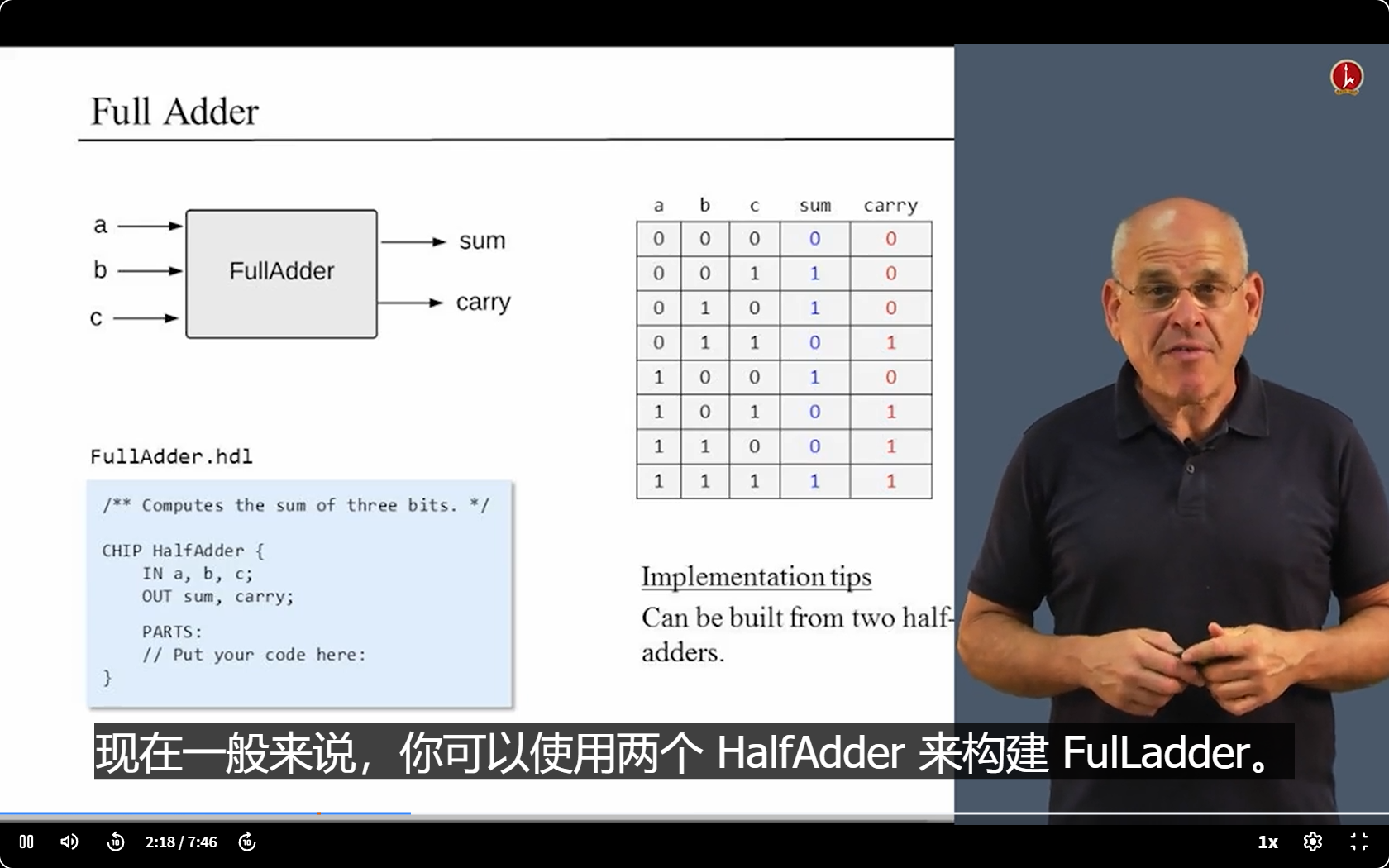

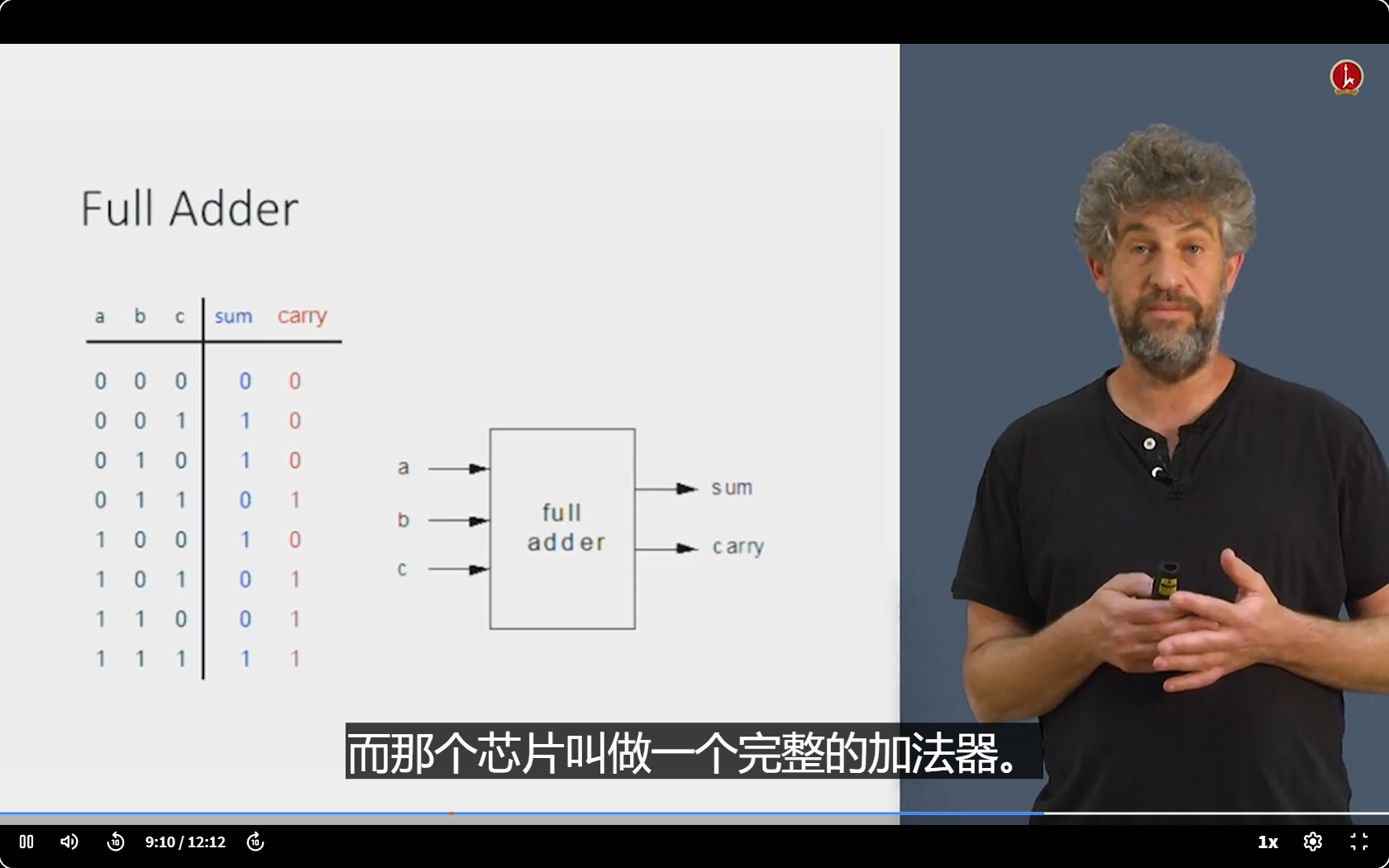

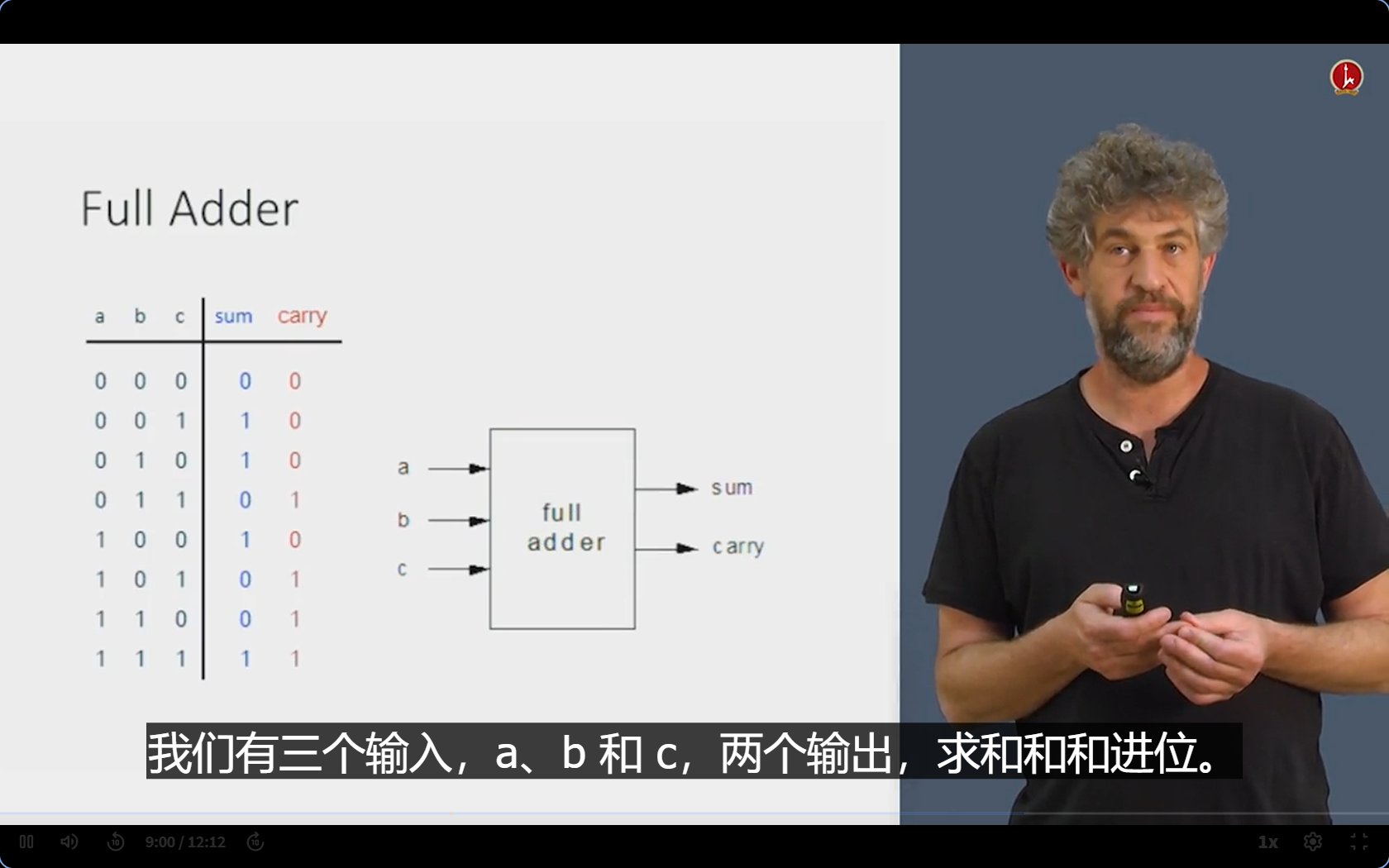

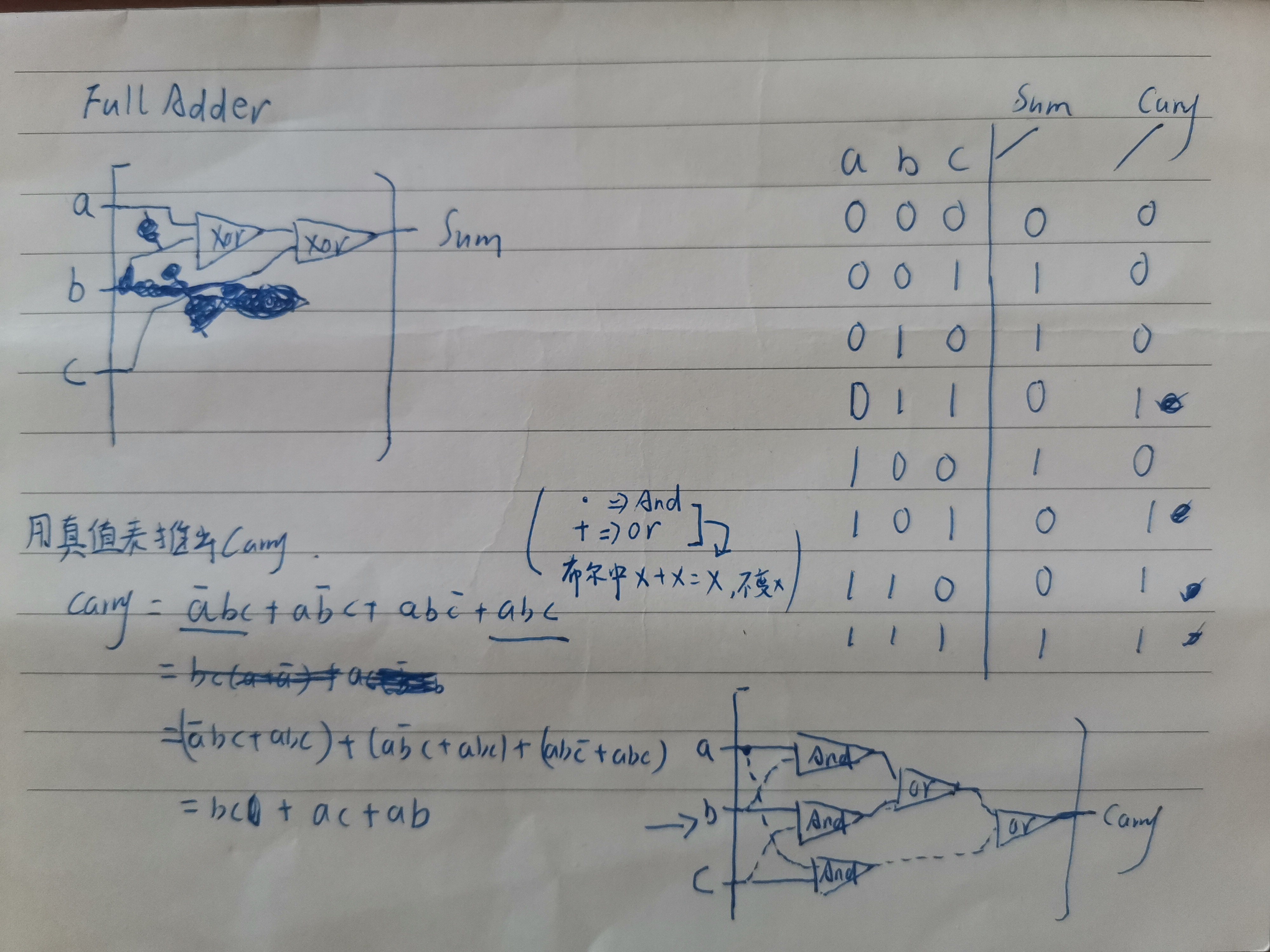

FullAdder

/**
 * Computes the sum of three bits.
 */

CHIP FullAdder {
    IN a, b, c;
    OUT sum,
        carry;

    PARTS:
    //sum
    Xor(a=a , b=b , out=xorab );
    Xor(a=xorab , b=c , out=sum );

    // carry
    And(a=a , b=b , out=w1 );
    And(a=b , b=c , out=w2 );
    And(a=c , b=a , out=w3 );
    Or(a=w1 , b=w2 , out=w4 );
    Or(a=w3 , b=w4 , out=carry );
}

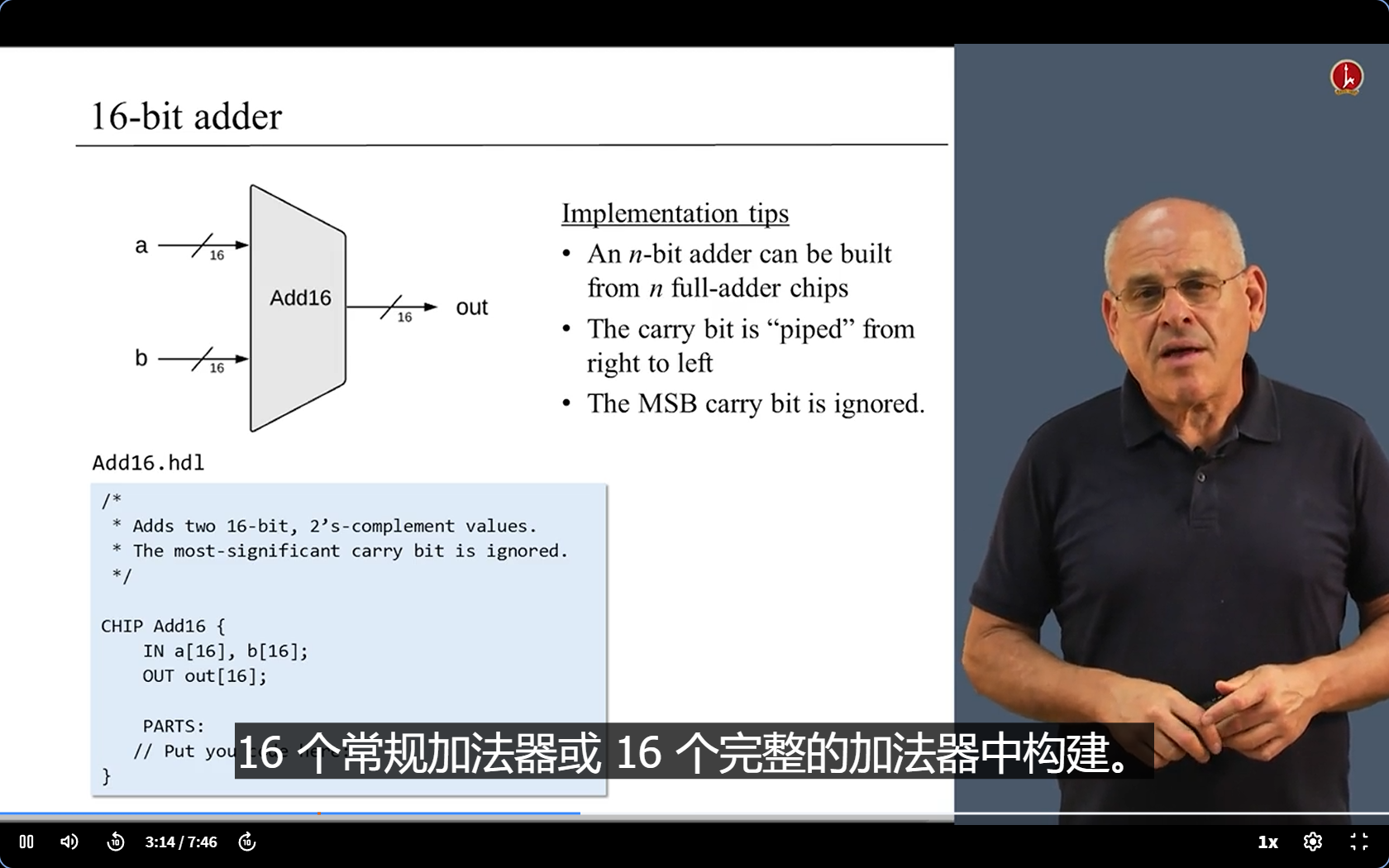

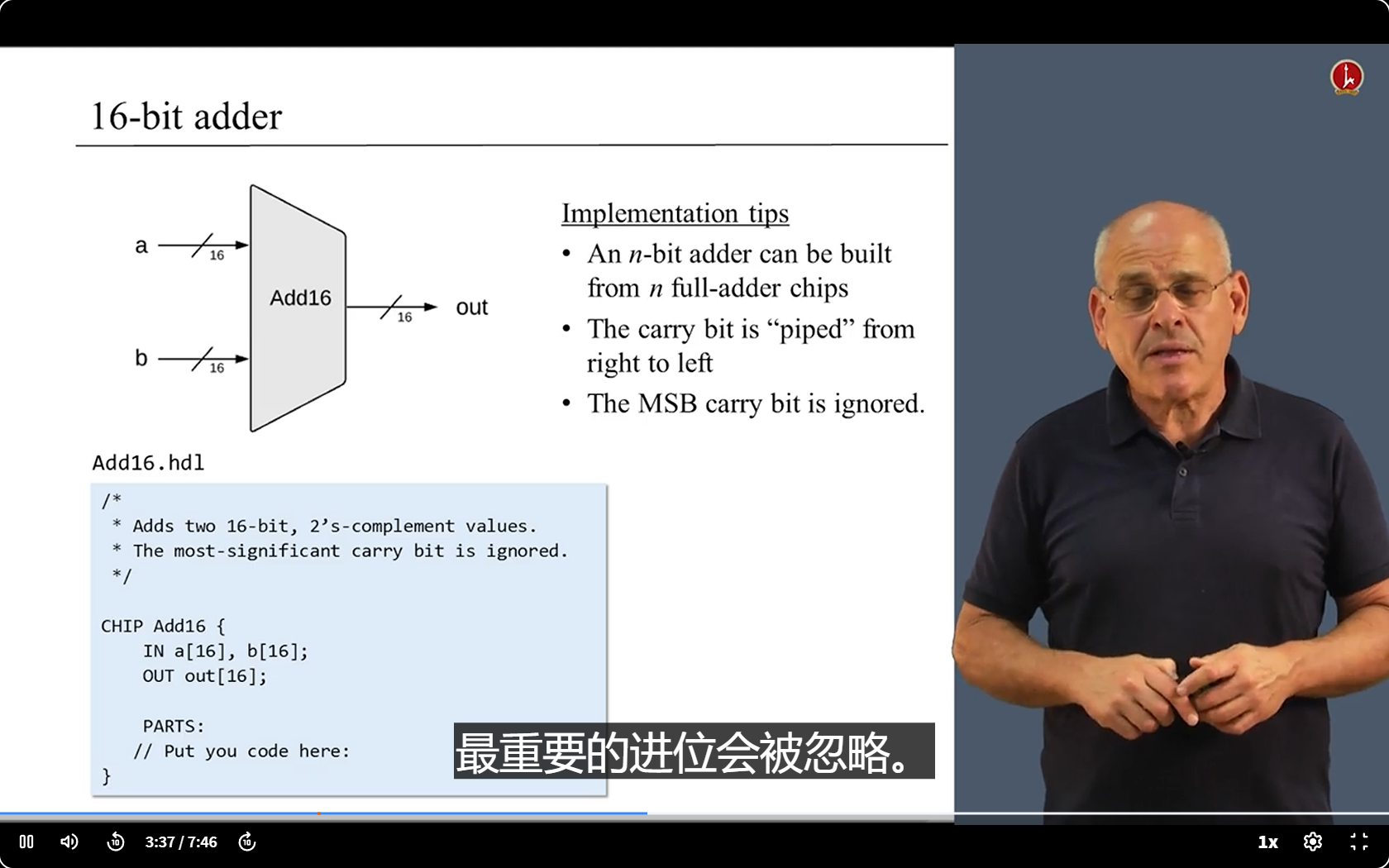

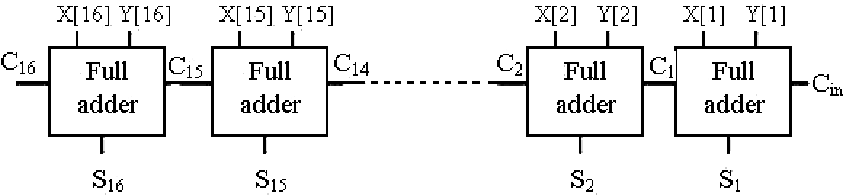

Add16 (16-bit adder)

/**
 * 16-bit adder: Adds two 16-bit two's complement values.
 * The most significant carry bit is ignored.
 */

CHIP Add16 {
    IN a[16], b[16];
    OUT out[16];

    PARTS:
    HalfAdder(a=a[0] , b=b[0] , sum=out[0] , carry=c0 );
    FullAdder(a=a[1] , b=b[1] , c=c0 , sum=out[1] , carry=c1 );
    FullAdder(a=a[2] , b=b[2] , c=c1, sum=out[2] , carry=c2 );
    FullAdder(a=a[3] , b=b[3] , c=c2 , sum=out[3] , carry=c3 );
    FullAdder(a=a[4] , b=b[4] , c=c3 , sum=out[4] , carry=c4 );
    FullAdder(a=a[5] , b=b[5] , c=c4 , sum=out[5] , carry=c5 );
    FullAdder(a=a[6] , b=b[6] , c=c5 , sum=out[6] , carry=c6 );
    FullAdder(a=a[7] , b=b[7] , c=c6 , sum=out[7] , carry=c7 );
    FullAdder(a=a[8] , b=b[8] , c=c7 , sum=out[8] , carry=c8 );
    FullAdder(a=a[9] , b=b[9] , c=c8 , sum=out[9] , carry=c9 );
    FullAdder(a=a[10] , b=b[10] , c=c9 , sum=out[10] , carry=c10 );
    FullAdder(a=a[11] , b=b[11] , c=c10 , sum=out[11] , carry=c11 );
    FullAdder(a=a[12] , b=b[12] , c=c11 , sum=out[12] , carry=c12 );
    FullAdder(a=a[13] , b=b[13] , c=c12 , sum=out[13] , carry=c13 );
    FullAdder(a=a[14] , b=b[14] , c=c13 , sum=out[14] , carry=c14 );
    FullAdder(a=a[15] , b=b[15] , c=c14 , sum=out[15] , carry=c15 );
}

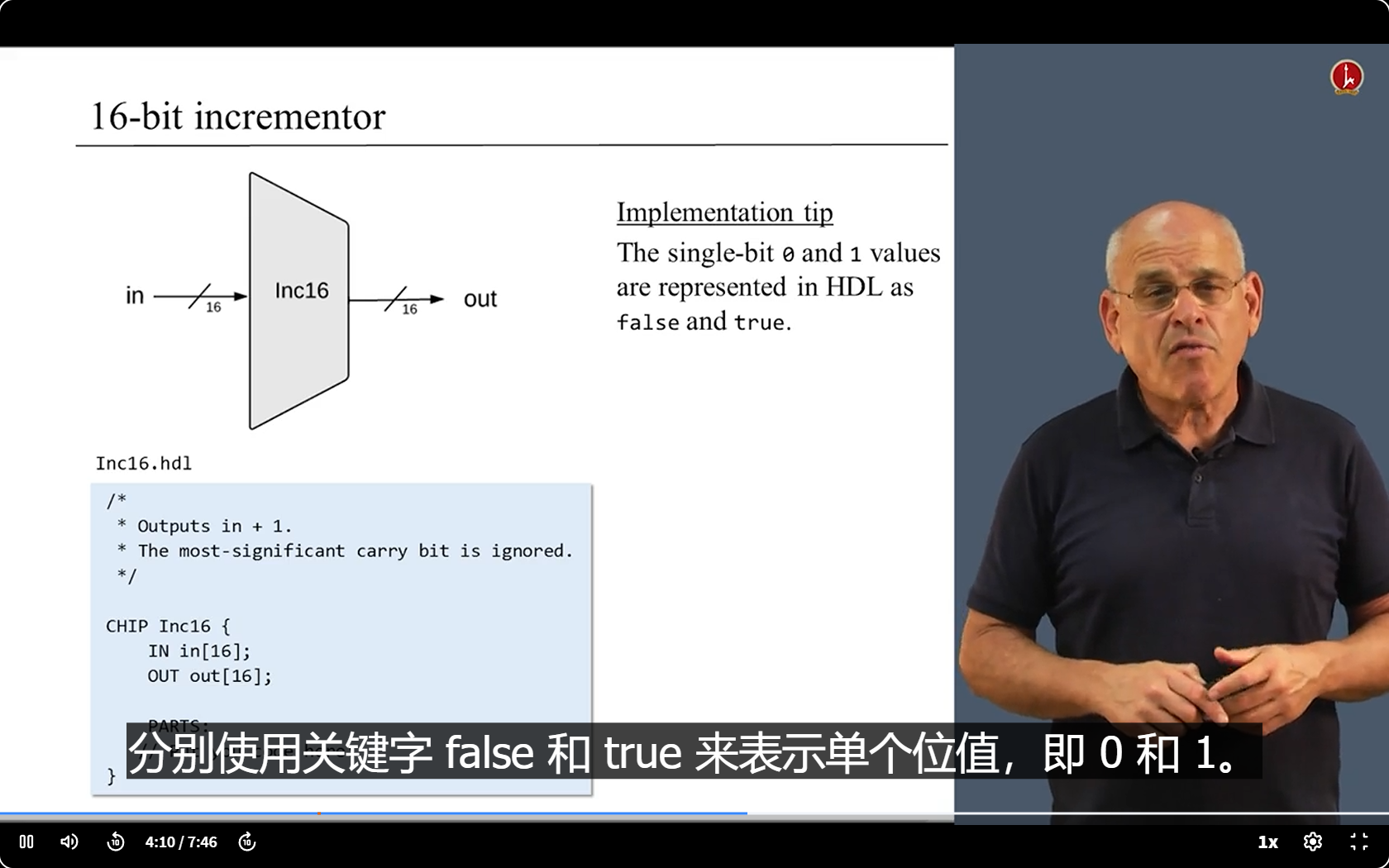

Inc16 (out = in + 1)

/**
 * 16-bit incrementer:
 * out = in + 1
 */

CHIP Inc16 {
    IN in[16];
    OUT out[16];

    PARTS:
    HalfAdder(a=in[0] , b=true , sum=out[0] , carry=c0 );
    FullAdder(a=in[1] , b=false , c=c0 , sum=out[1] , carry=c1 );
    FullAdder(a=in[2] , b=false , c=c1, sum=out[2] , carry=c2 );
    FullAdder(a=in[3] , b=false , c=c2 , sum=out[3] , carry=c3 );
    FullAdder(a=in[4] , b=false , c=c3 , sum=out[4] , carry=c4 );
    FullAdder(a=in[5] , b=false , c=c4 , sum=out[5] , carry=c5 );
    FullAdder(a=in[6] , b=false , c=c5 , sum=out[6] , carry=c6 );
    FullAdder(a=in[7] , b=false , c=c6 , sum=out[7] , carry=c7 );
    FullAdder(a=in[8] , b=false , c=c7 , sum=out[8] , carry=c8 );
    FullAdder(a=in[9] , b=false , c=c8 , sum=out[9] , carry=c9 );
    FullAdder(a=in[10] , b=false , c=c9 , sum=out[10] , carry=c10 );
    FullAdder(a=in[11] , b=false , c=c10 , sum=out[11] , carry=c11 );
    FullAdder(a=in[12] , b=false , c=c11 , sum=out[12] , carry=c12 );
    FullAdder(a=in[13] , b=false , c=c12 , sum=out[13] , carry=c13 );
    FullAdder(a=in[14] , b=false , c=c13 , sum=out[14] , carry=c14 );
    FullAdder(a=in[15] , b=false , c=c14 , sum=out[15] , carry=c15 );
}

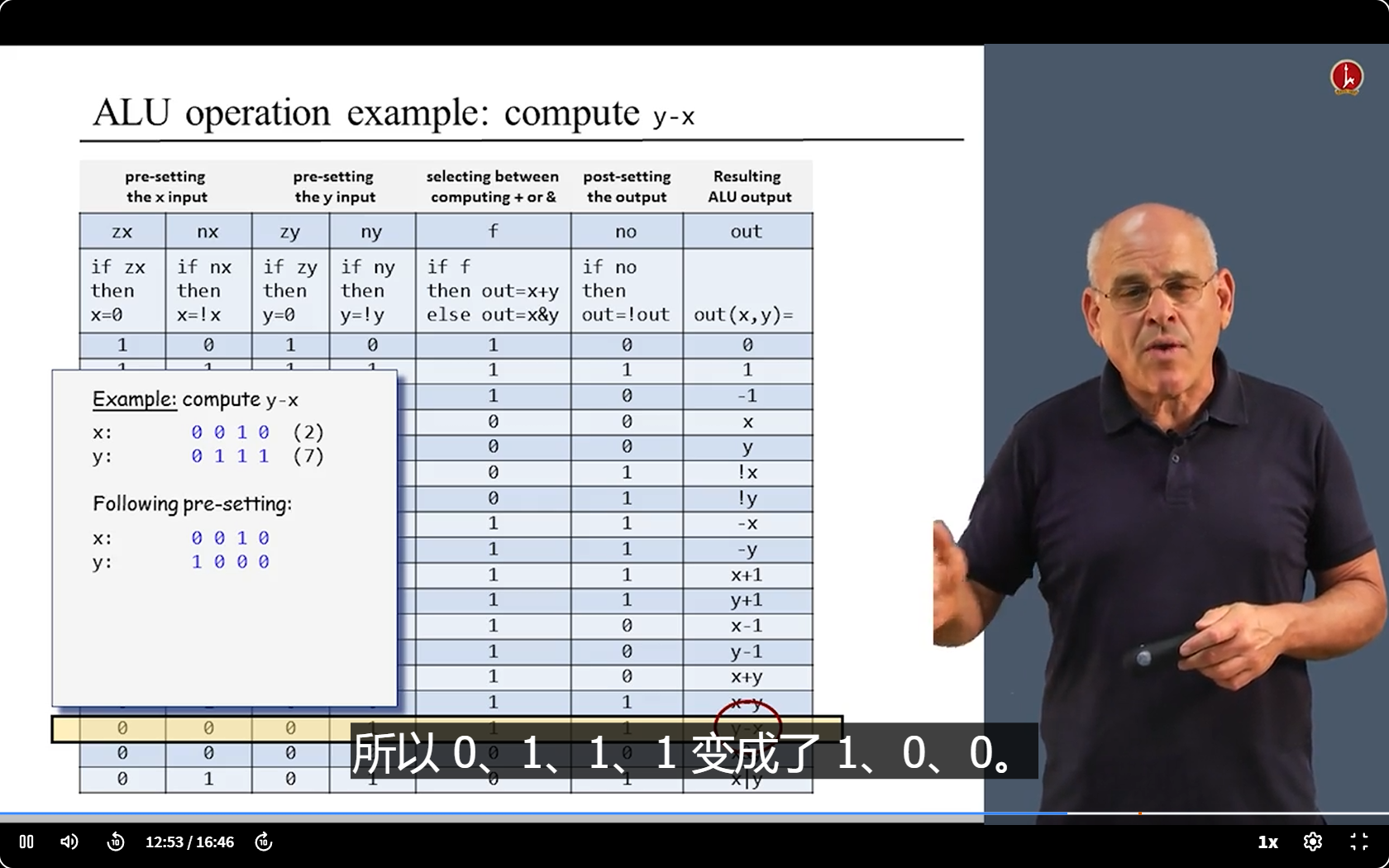

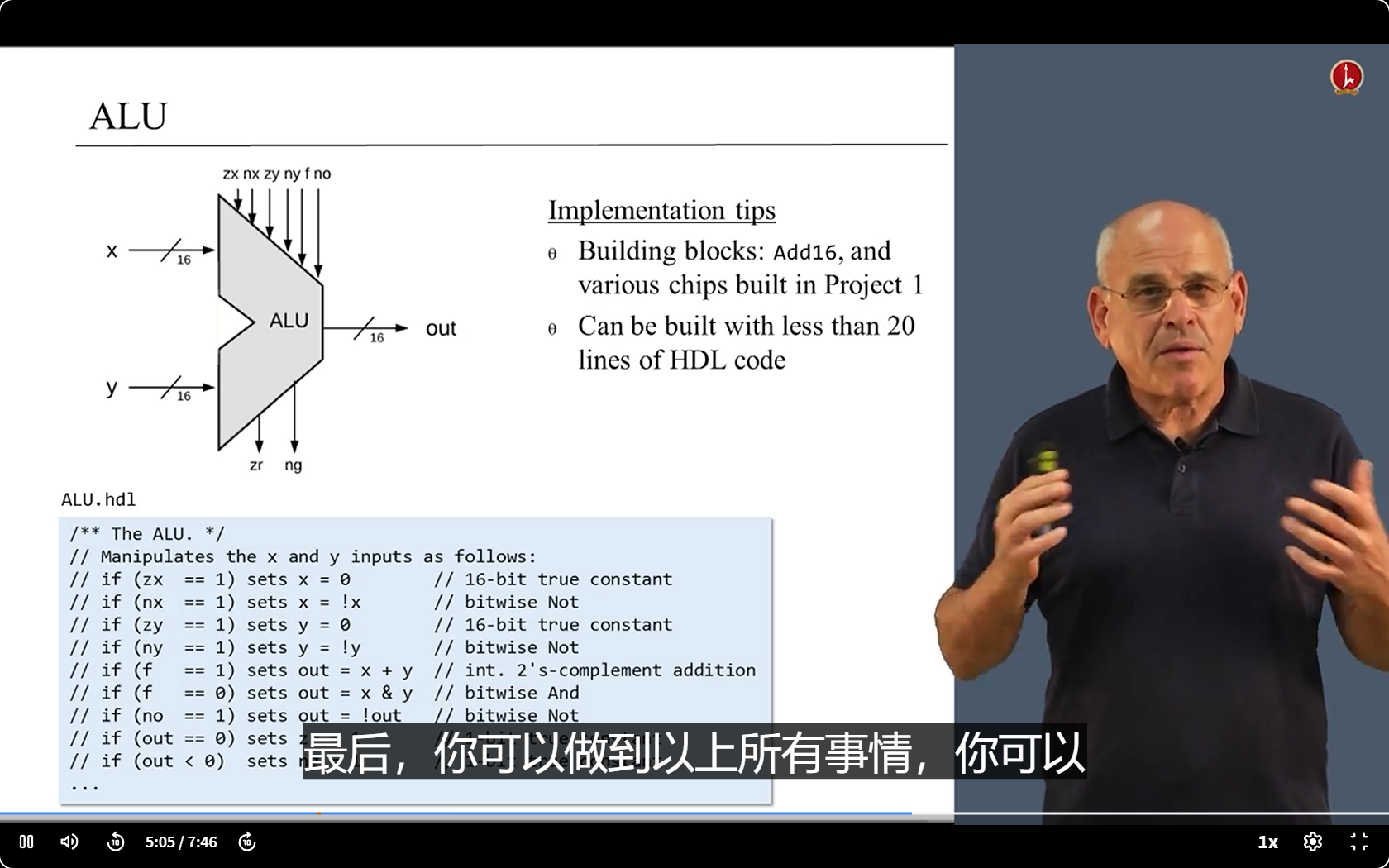

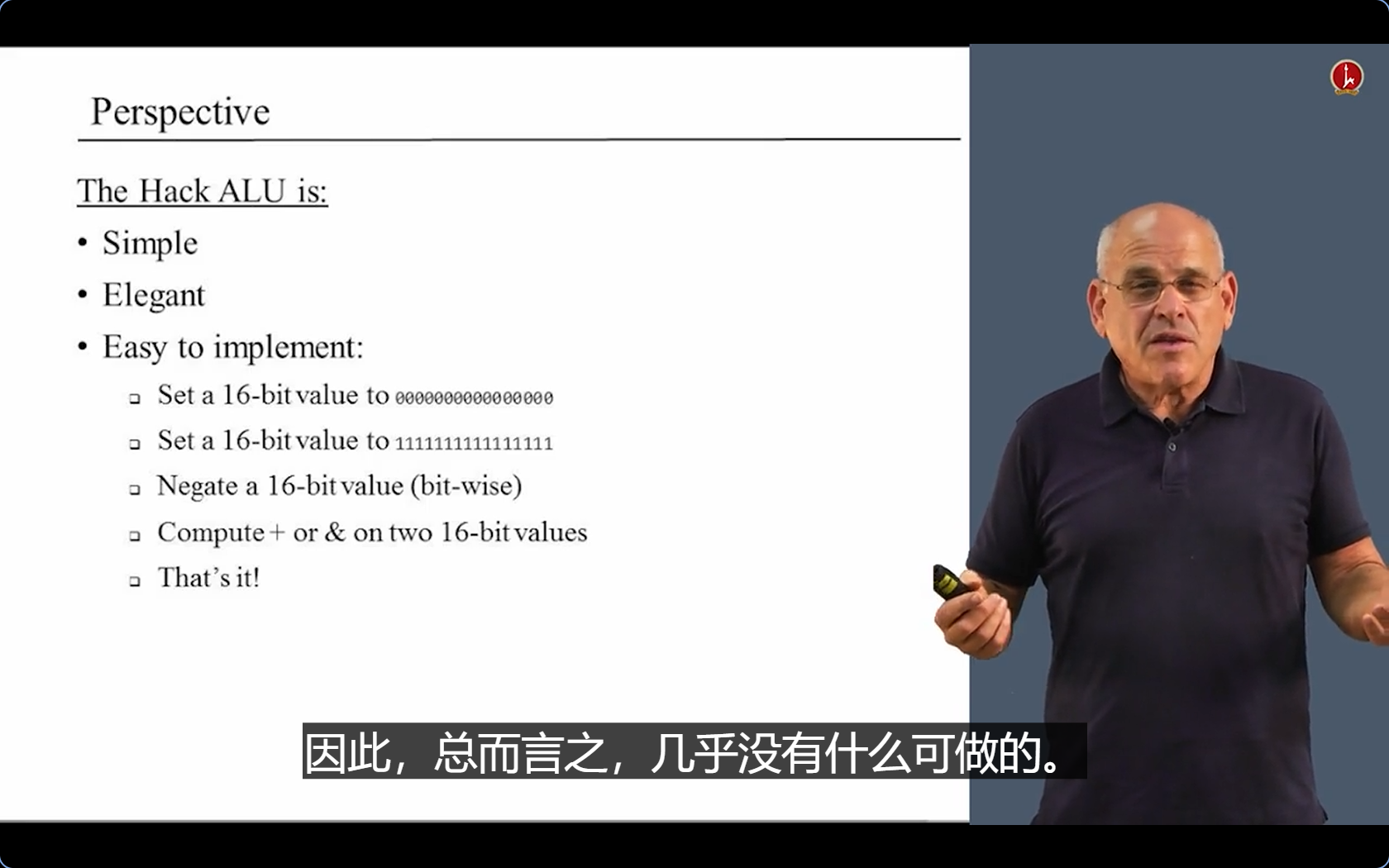

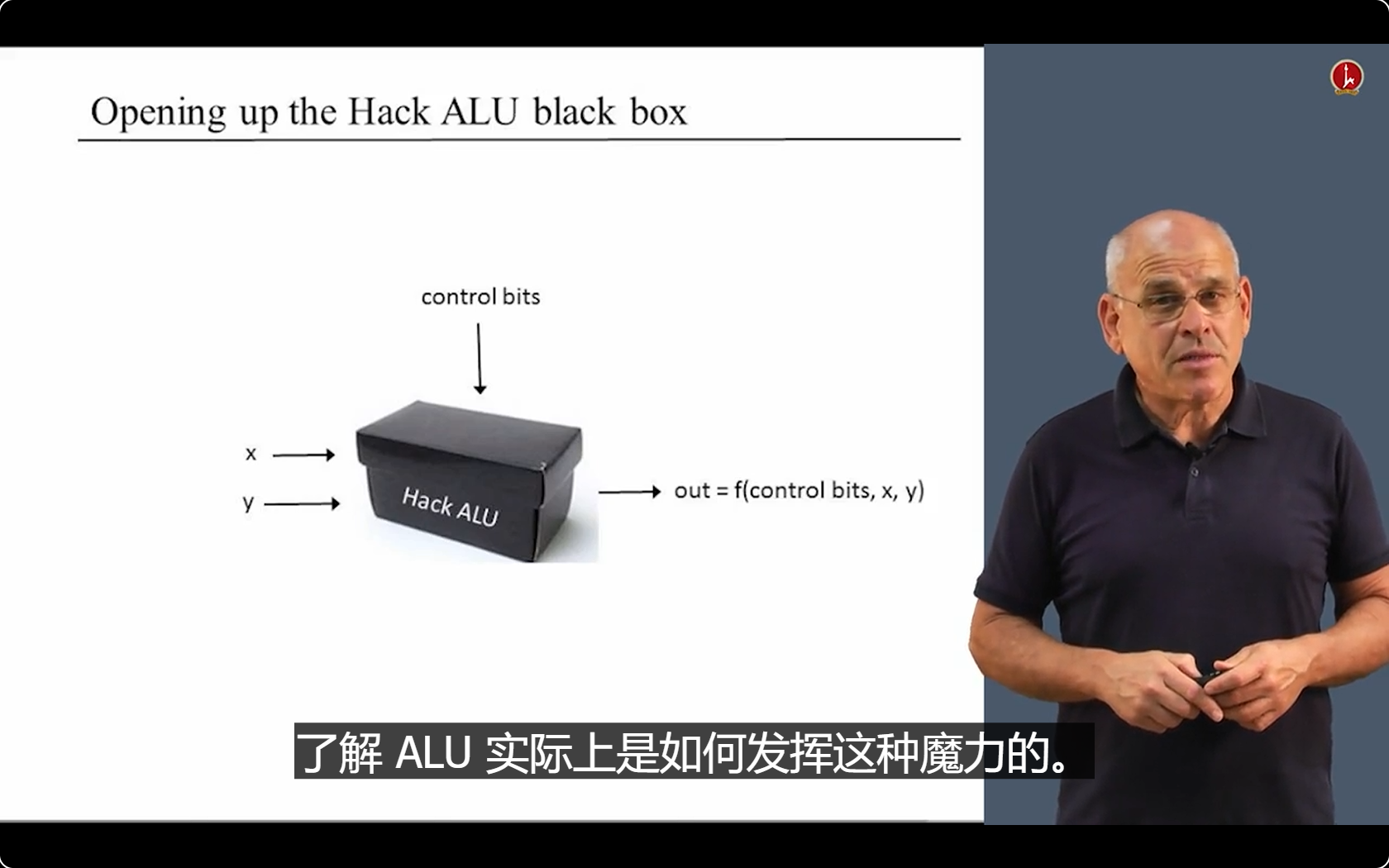

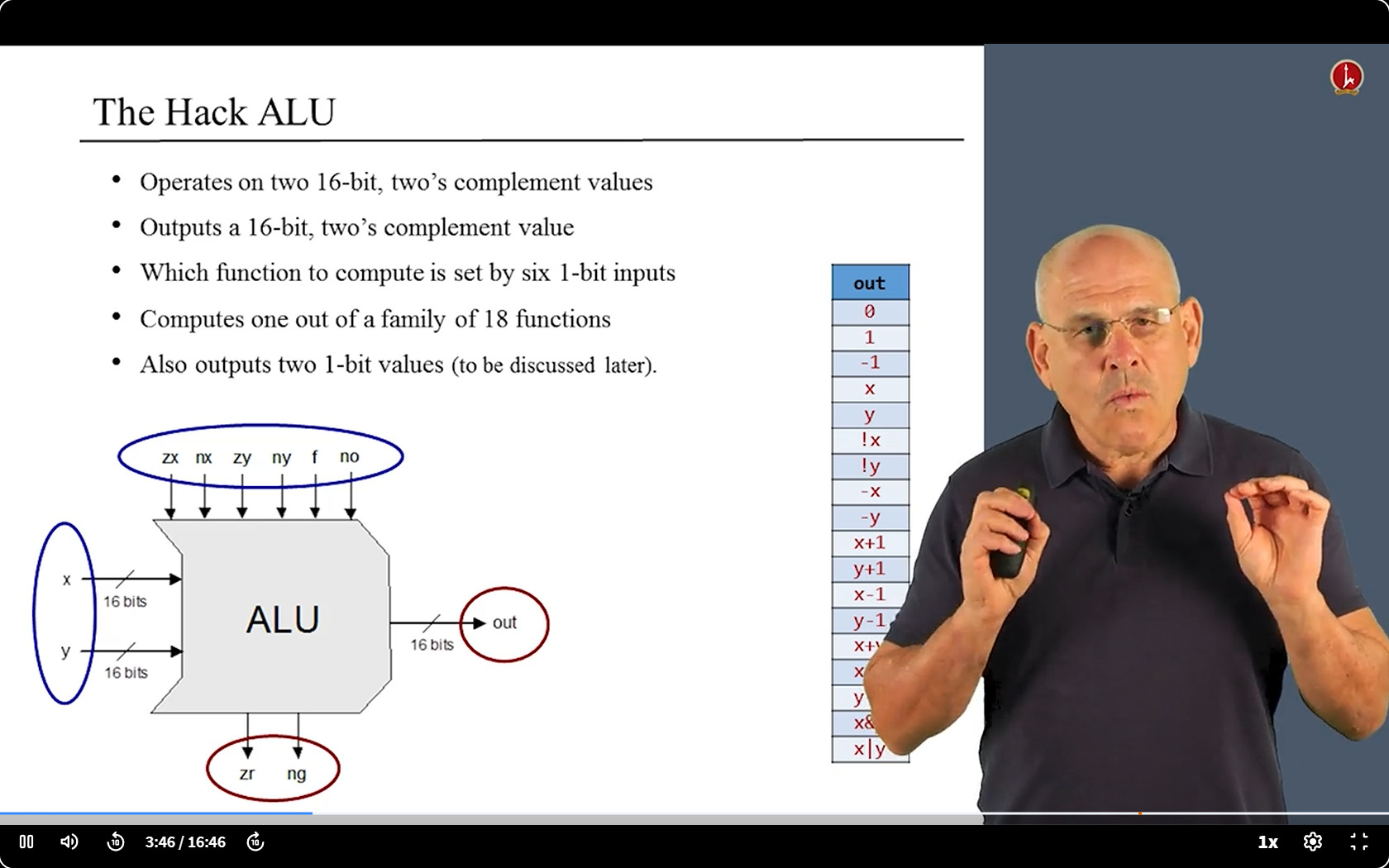

ALU

（one by one)

/**

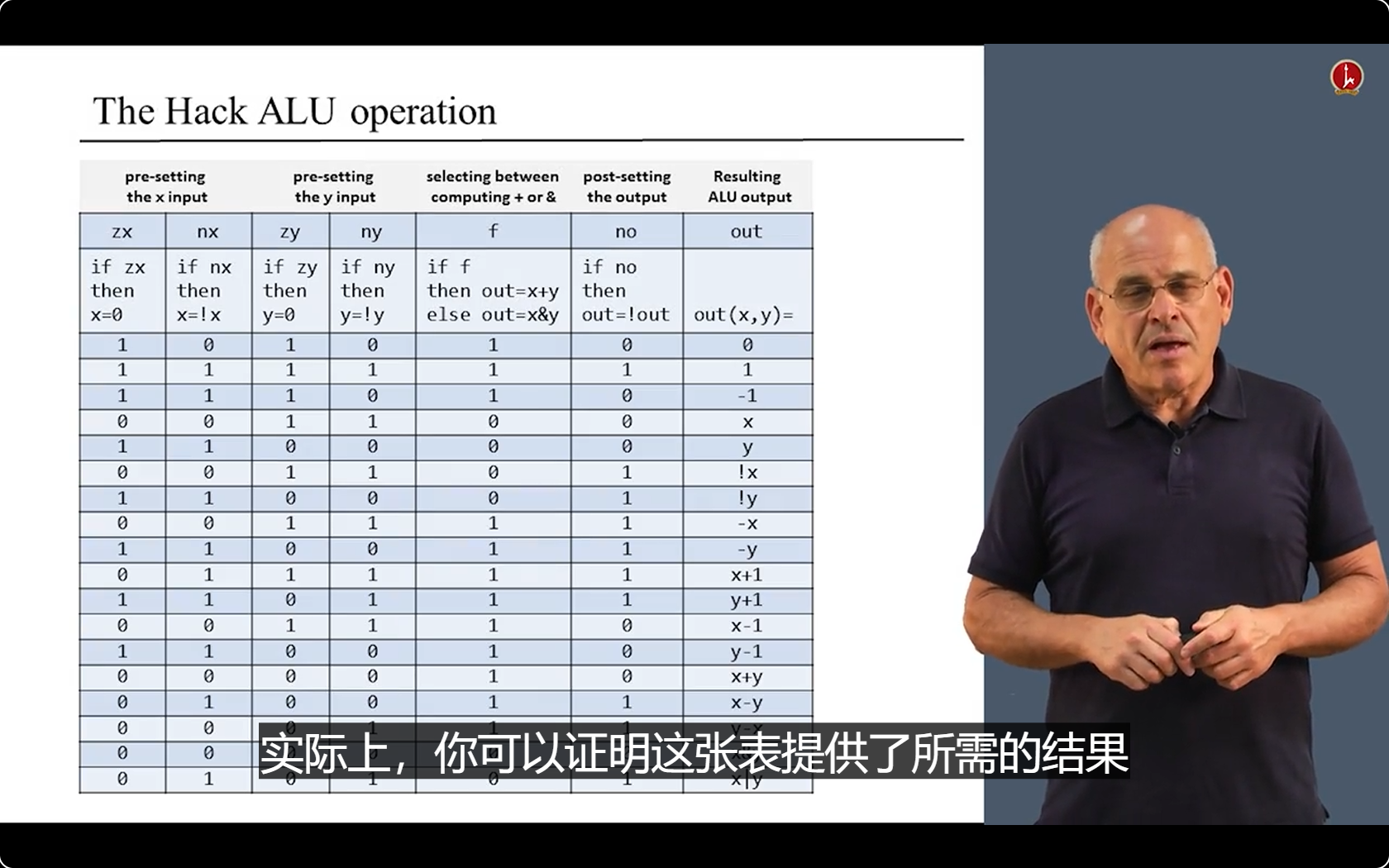

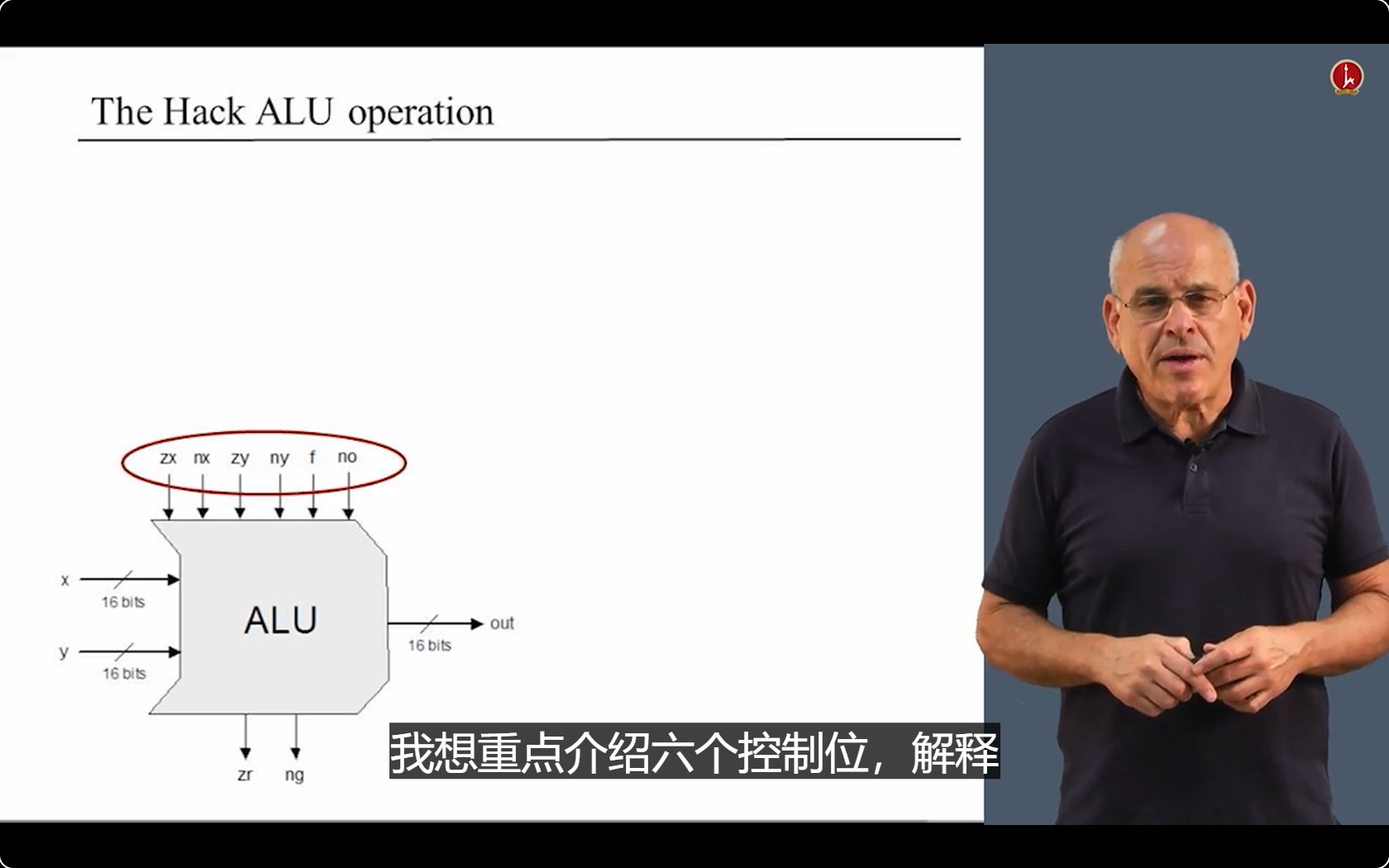

 * ALU (Arithmetic Logic Unit):
 * Computes out = one of the following functions:
 *                0, 1, -1,
 *                x, y, !x, !y, -x, -y,
 *                x + 1, y + 1, x - 1, y - 1,
 *                x + y, x - y, y - x,
 *                x & y, x | y
 * on the 16-bit inputs x, y,
 * according to the input bits zx, nx, zy, ny, f, no.

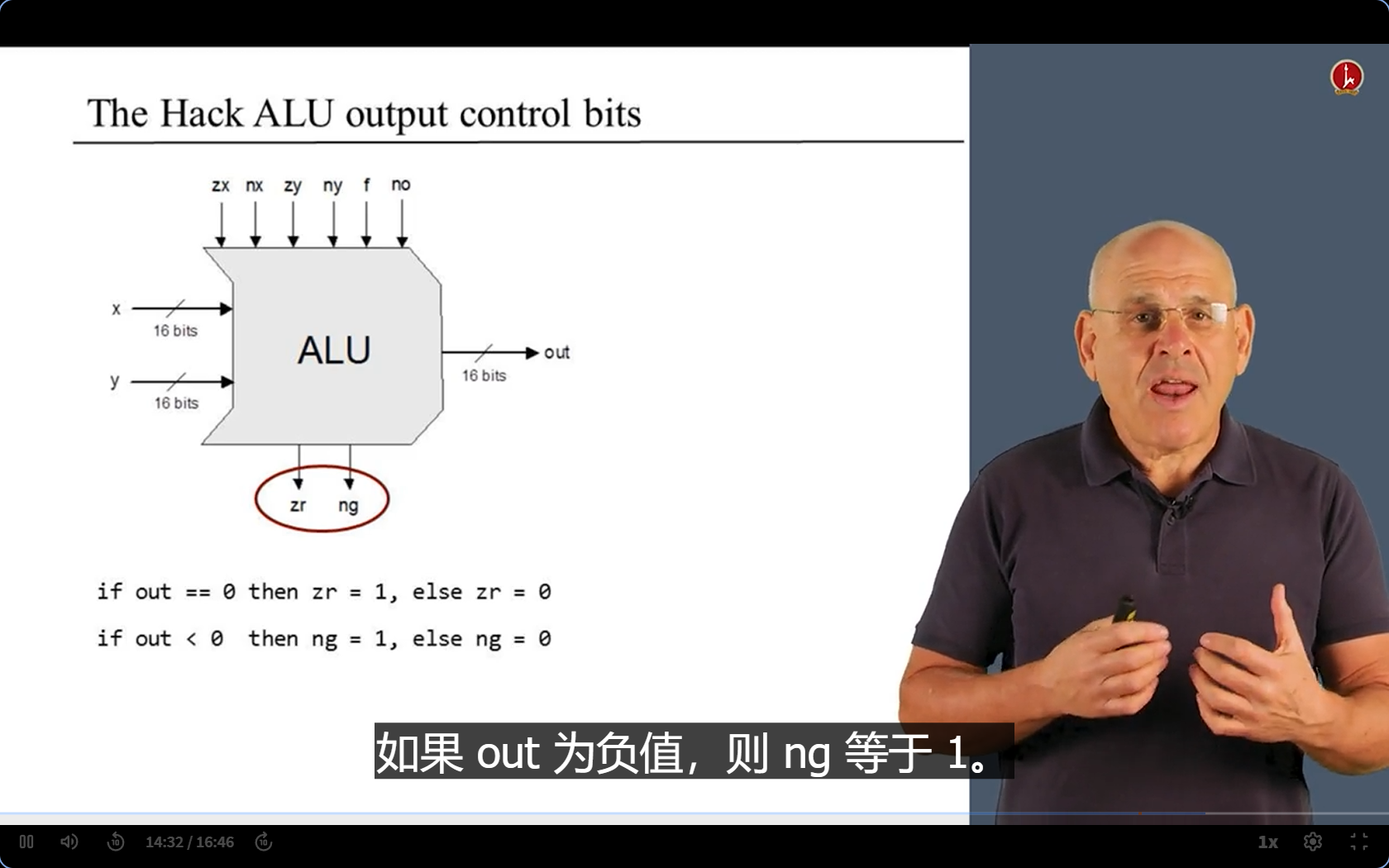

 * In addition, computes the two output bits:
 * if (out == 0) zr = 1, else zr = 0
 * if (out < 0)  ng = 1, else ng = 0
 */

// Implementation: Manipulates the x and y inputs
// and operates on the resulting values, as follows:
// if (zx == 1) sets x = 0        // 16-bit constant
// if (nx == 1) sets x = !x       // bitwise not
// if (zy == 1) sets y = 0        // 16-bit constant
// if (ny == 1) sets y = !y       // bitwise not
// if (f == 1)  sets out = x + y  // 整数补码加法
// if (f == 0)  sets out = x & y  // bitwise !and!
// if (no == 1) sets out = !out   // bitwise not

ALU


CHIP ALU {
    IN
        x[16], y[16],  // 16-bit inputs
        zx, // zero the x input?
        nx, // negate the x input?
        zy, // zero the y input?
        ny, // negate the y input?
        f,  // compute (out = x + y) or (out = x & y)?
        no; // negate the out output?
    OUT
        out[16], // 16-bit output
        zr,      // if (out == 0) equals 1, else 0
        ng;      // if (out < 0)  equals 1, else 0

    PARTS:
    // zx
    Mux16(a=x , b=false , sel=zx , out=x1 );

    // nx
    Not16(in=x1 , out=notx );
    Mux16(a=x1 , b=notx , sel=nx , out=x2 );

    // zy
    Mux16(a=y , b=false , sel=zy , out=y1 );

    // ny
    Not16(in=y1 , out=noty );
    Mux16(a=y1 , b=noty , sel=ny , out=y2 );

    // f
    And16(a=x2 , b=y2 , out=and );    // & 是 按位 与运算 and
    Add16(a =x2 , b =y2 , out =add ); // + 是 按位 加运算 add
    Mux16(a=and , b=add , sel=f , out=l1 );

    // no
    Not16(in=l1 , out=l2 );
    Mux16(a=l1, b=l2, sel=no, out=out,out[0..7]=kk1, out[8..15]=kk2, out[15]=kk);
    // kk是精华 ！

    // zr
    Or8Way(in=kk1, out=zr1);
    Or8Way(in=kk2, out=zr2);
    Or(a=zr1, b=zr2, out=zrNot);
    Not(in=zrNot, out=zr);

    // ng
    Mux(a=false, b=kk, sel=zrNot, out=ng);
    }
